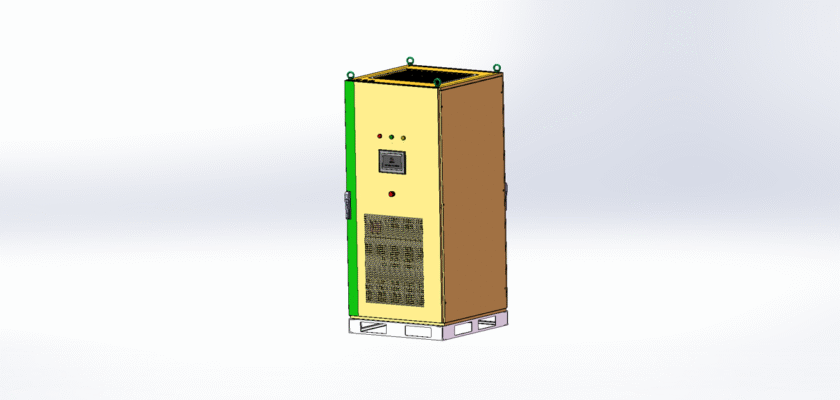

Facing critical power quality issues in your industrial environment? MechStream offers the essential free technical drawing for the APF100 Three-Phase Four-Wire Power Supply System and Control Box! This advanced, integrated cabinet is specifically engineered to house a 100A Active Power Filter (APF) unit, crucial for eliminating harmonic currents, correcting power factor, and balancing three-phase loads in complex electrical systems. Designed for the widely used three-phase four-wire configuration, this system ensures compatibility and superior power conditioning for sensitive machinery.

This free blueprint is an invaluable resource for electrical distribution designers, power quality experts, and panel manufacturers. The detailed drawing provides precise dimensional data, critical internal partitioning for the APF module, isolation zones for the power supply system components (breakers, metering), and specialized ventilation specifications. Utilizing this powerful drawing guarantees your cabinet fabrication is structurally sound, thermally optimized, and perfectly aligned to deliver reliable power quality. Stop struggling with harmonics and unbalanced loads. Download the professional-grade APF100 Three-Phase Four-Wire Control Box Drawing today and secure the robust foundation for your power conditioning solution!

Key Features:

  • 100A APF Capacity: Designed with necessary space and support for a high-capacity 100 A Active Power Filter module for robust harmonic mitigation.
  • Three-Phase Four-Wire Integration: Layout is configured to integrate the APF seamlessly with the standard 3P4W power distribution bus, including neutral current management.
  • Dual Compartmentalization: Features internal separation to isolate the sensitive APF control electronics from the high-current power switching components, enhancing safety and EMI shielding.
  • Advanced Thermal Design: Specifies optimized cooling mechanisms and air pathways essential for dissipating the heat generated by the 100A APF unit during continuous operation.
  • Comprehensive Control Access: Includes front panel specifications for HMI/indicator lights for monitoring the APF status and system performance.
