A new 3-Axis CNC Engraving Machine is a powerful and versatile tool for creating precise and intricate designs on a variety of materials. By operating along the X, Y, and Z axes, it can perform highly accurate cutting, carving, and engraving tasks on materials such as wood, plastics, soft metals, and more. This machine is a staple in industries from jewelry making and sign creation to rapid prototyping and decorative arts. Unlike manual engraving, a CNC machine uses computer numerical control to automate the process, ensuring perfect repeatability and consistency for every project. The machine’s high-speed spindle, combined with a stable gantry and bed, allows for high-quality surface finishes and complex 3D carvings.

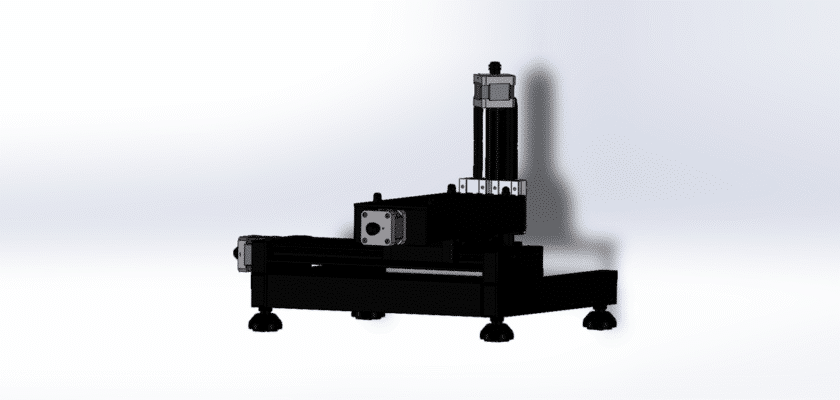

This free, comprehensive drawing of a 3-Axis CNC Engraving Machine offers a deep dive into its mechanical and electronic components. It is an ideal resource for engineers, students, and DIY enthusiasts looking to build their own machine or simply understand the principles behind this incredible technology.
Key Features:
- Precision Movement: The drawing details the ball screws and linear guides on the X, Y, and Z axes, which are crucial for the machine’s high accuracy and smooth motion.
- Robust Spindle System: The design highlights the high-speed, water-cooled spindle motor, showing how it delivers the power needed for detailed and clean engravings.
- Integrated Control: The drawing includes schematics for the machine’s control system, which translates G-code from CAD/CAM software into precise physical movements.
- Versatile Work Area: The plans showcase the design of the work bed and clamping system, demonstrating how different materials can be securely held for a variety of projects.
