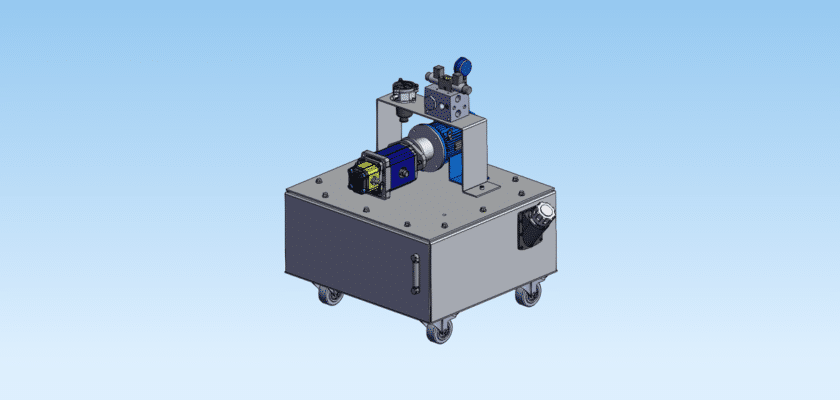

Secure the ultimate technical drawing package for a robust 3KW Hydraulic Oil Tank! MechStream offers these high-precision blueprints for instant download now. This tank is an essential component of a small to medium-sized Hydraulic Power Station (HPS), designed to efficiently house the fluid necessary for systems driven by a 3KW motor or smaller. The reservoir’s design is critical for thermal management, fluid filtration, and preventing cavitation in the hydraulic pump.

Our comprehensive package grants fast access to the awesome design specifications of this incredible unit. The drawing set includes detailed plans for the tank body fabrication, internal baffling layout, sight glass and level gauge mounting, and the porting interfaces for the pump suction line, return line, and drain plug. Understanding the internal volume, venting requirements, and the placement of components like the suction strainer is key to maximizing fluid longevity and system efficiency. By downloading these powerful technical files, you gain all the necessary dimensional data, material specifications (for corrosion resistance), and assembly layouts for accurate manufacturing or rigorous engineering analysis. Stop compromising on fluid power fundamentals. Download the complete 3KW Hydraulic Oil Tank drawing today and leverage professional-grade schematics to ensure your compact hydraulic system is supplied by a reliable and expertly engineered reservoir. This resource is indispensable for HPS designers.

Key Features:

  • Optimal Volume Sizing: Detailed dimensions ensuring the tank volume is adequately sized for cooling and fluid dwell time, commensurate with 3KW system operation.
  • Internal Baffling Design: Schematics illustrating the placement of internal baffles to promote heat exchange and separate return oil from pump suction.
  • Component Interface: Precise mounting plans for sight gauges, temperature sensors, breather caps, and coupling interfaces for the pump assembly.
  • Material and Fabrication: Specifications for the steel gauge and welding requirements to ensure structural integrity and leak-proof construction.
  • Cleanout Access: Drawings include details for access covers or flanges to facilitate internal cleaning and maintenance.
