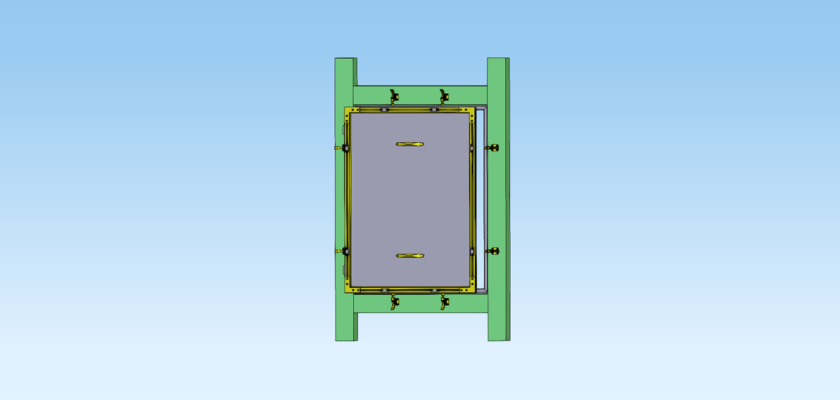

Maintaining environmental purity in a manufacturing or laboratory setting requires more than just a standard entrance; it requires a specialized Aluminum Alloy Profile Dustproof Door. This comprehensive engineering drawing provides the structural blueprints for a high-sealing door system designed to prevent the ingress of particulates, moisture, and contaminants. By utilizing lightweight yet high-strength aluminum extrusions, this design offers superior structural rigidity without the heavy floor-loading requirements of steel, making it ideal for cleanrooms, electronics assembly areas, and pharmaceutical labs.

This technical document details the integration of specialized T-slot profiles, corner connectors, and high-performance EPDM or silicone gaskets. By downloading this blueprint, you gain access to a design that prioritizes “zero-gap” sealing through a multi-point contact system. The layout includes specific dimensions for tempered safety glass inserts, automatic drop-seals for the floor interface, and ergonomic handle mountings. Whether you are retrofitting an existing facility or designing a new modular cleanroom, this resource provides the verified tolerances and assembly sequences needed for a professional-grade, airtight installation.

Don’t let dust compromise your sensitive equipment or product yields. Utilize this industry-standard reference to understand the assembly of heavy-duty hinges and the implementation of interlocking frames. At MechStream, we provide the blueprints that help you control your environment with precision. Download this high-quality technical asset today.

Key Features:

  • High-Precision Profile Mating: Detailed schematics for 45-degree mitered joints and internal corner reinforcements for maximum frame stability.
  • Integrated Gasket Channels: Features dedicated extrusion cavities designed to hold compression seals firmly in place without the need for adhesives.
  • Automatic Bottom Seal: Includes specifications for mechanical drop-seals that activate when the door closes, ensuring a dust-tight fit against the floor.
  • Corrosion-Resistant Surface: Material callouts for anodized or powder-coated aluminum to withstand rigorous chemical cleaning protocols.
  • Modular Panel Compatibility: Designed to accept various infill materials, including anti-static acrylic, tempered glass, or aluminum composite panels.
