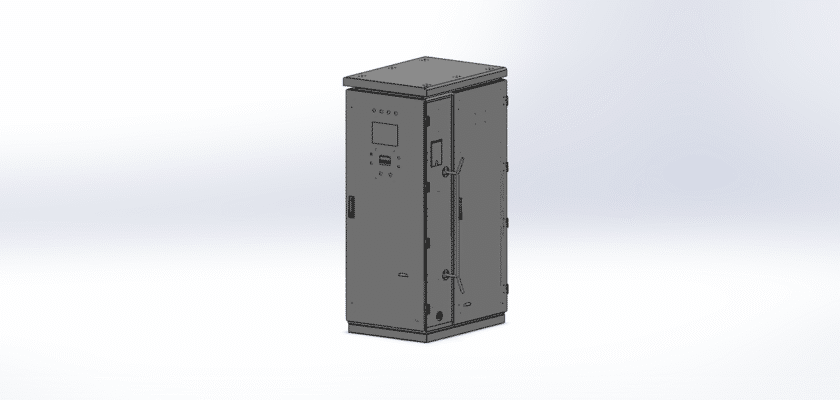

Launch your electric vehicle (EV) charging station projects faster with this powerful 120KW Charger Structural Cabinet Drawing free download. The demand for high-speed DC fast charging is rapidly increasing, and having an accurate, ready-to-use structural model for the 120KW charging cabinet is essential for any deployment. This detailed رسم CAD provides the complete dimensional and structural framework required to house the power modules, control systems, and cooling components of a high-power EV charger. Download this resource immediately to streamline your site planning and manufacturing processes.

هذا الرسم الحر is indispensable for mechanical engineers, EV infrastructure developers, and system integrators. It allows for precise layout planning, thermal management analysis, and verification of safety clearances within the cabinet. The model meticulously details the internal structure, including component racks, cable routing paths, and external interfaces for charging guns and user displays. By using this professional, universally compatible الرسم, you can bypass the time-consuming process of designing a robust cabinet from scratch. Focus your expertise on the critical electrical and software systems, not on basic enclosure geometry. Get your free 120KW Charger Cabinet drawing now and ensure your next charging station deployment is precise, efficient, and robust!

الميزات الرئيسية:

  • High-Power Design Capacity: The structural model is dimensioned to safely and efficiently accommodate the heavy and heat-generating components of a 120KW charging system.
  • Optimized Cooling Layout: Includes necessary features and internal volume for effective thermal management, critical for maintaining performance and longevity of DC fast chargers.
  • سلامة هيكلية قوية: Designed with features typical of durable outdoor enclosures, offering protection against environmental factors and ensuring component security.
  • Defined Interface Zones: Clearly indicates mounting areas for the Human-Machine Interface (HMI), cable entry, and charging gun holsters for a production-ready design.
  • التوافق العالمي مع CAD: Available in industry-standard neutral file formats, ensuring seamless integration with all major mechanical and electrical design software packages.
