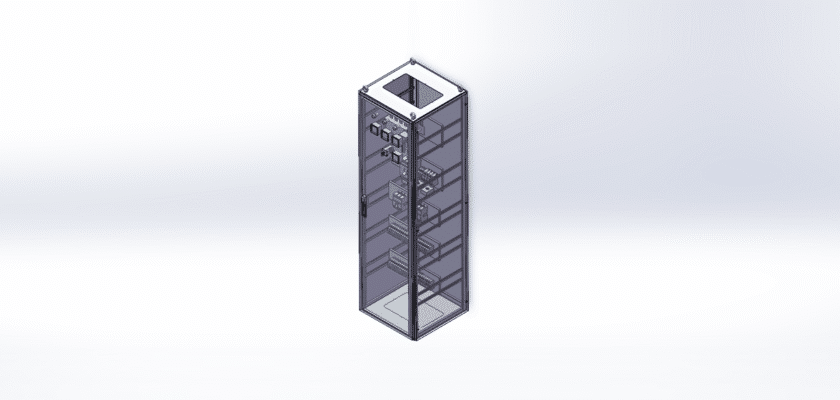

Are you designing a large-scale power control center or Motor Control Center (MCC)? MechStream is offering the essential free technical الرسم for the full-height 2000x600x600 Distribution Box! This towering enclosure, measuring $2000\text{mm}$ high, $600\text{mm}$ wide, and $600\text{mm}$ deep, provides the maximum vertical space required to house main circuit breakers, extensive busbar systems, and modular component trays for complex power distribution applications. Its robust and standardized design makes it invaluable for large industrial plants, high-rise commercial buildings, and utility substations.

This free blueprint is a powerful resource for electrical engineers, control panel builders, and project managers. The detailed الرسم includes precise structural frame details, optimal layouts for power component mounting (switchgear, metering, control gear), and specifications for the heavy-duty base and lifting points.3 Utilizing this powerful drawing ensures your distribution box fabrication is structurally sound, easily integrable into existing lineups, and fully compliant with safety and electrical standards. Stop struggling with custom dimensions. تنزيل the professional-grade 2000x600x600 Distribution Box Drawing today and secure the reliable heart of your electrical infrastructure!

الميزات الرئيسية:

  • Full-Height Design: The $2000\text{mm}$ height maximizes component mounting area, ideal for MDBs or compartmentalized MCC sections.
  • Double Depth Capacity: The $600\text{mm}$ depth allows for extensive wire management, busbar routing, and back-to-back mounting configurations if needed.
  • التكامل المعياري: Designed with compatibility in mind, featuring mounting points that allow for easy ganging or lining up with other standard industrial cabinets.
  • البناء الثقيل: Specifies reinforced frame components and panel thickness necessary to safely support heavy internal power distribution equipment.
  • Advanced Cable Management: Includes dedicated top and bottom cable entry plates and internal wire ducting specifications for organized, high-volume cable routing.
