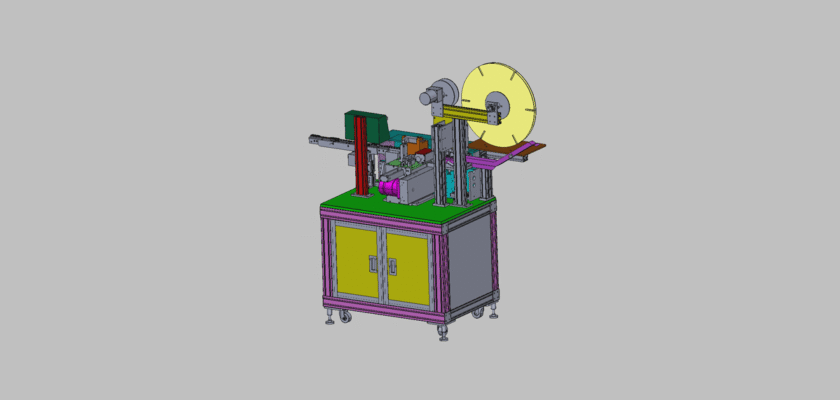

Gain a critical advantage in high-speed manufacturing with our free technical الرسم of an Automatic Cam Pin Insertion Machine. This comprehensive blueprint is an indispensable resource for engineers, students, and professionals aiming to master the principles of high-precision assembly automation. Cam mechanisms are celebrated for their ability to deliver rapid, repeatable, and stable motion, making them ideal for the fast-paced world of pin insertion. This machine is expertly designed to automatically feed, orient, and insert pins into components like circuit boards, connectors, and plastic housings with unmatched accuracy and speed. By studying this detailed drawing, you will gain a deep understanding of how this machine’s mechanical design ensures minimal vibration, stable transmission timing, and high reliability, surpassing more complex multi-axis robotic systems in many applications. Download this resource to accelerate your project development and build a more efficient and reliable production line.
الميزات الرئيسية:
- Cam-Driven High Speed: The core cam mechanism converts rotary motion into precise, high-speed reciprocating action, significantly reducing cycle times and boosting production throughput.
- Exceptional Accuracy and Repeatability: The machine’s design ensures a precise insertion depth and position for every pin, with a high repeatability that minimizes defects and improves product quality.
- Integrated Feeding System: It utilizes an automated pin feeding and orientation system, such as a vibratory bowl feeder, to ensure a continuous and steady supply of pins to the insertion head.
- Durable and Reliable Construction: The blueprint highlights a robust mechanical structure and a simplified motion path, which increases the machine’s lifespan and reduces maintenance requirements compared to more complex systems.
