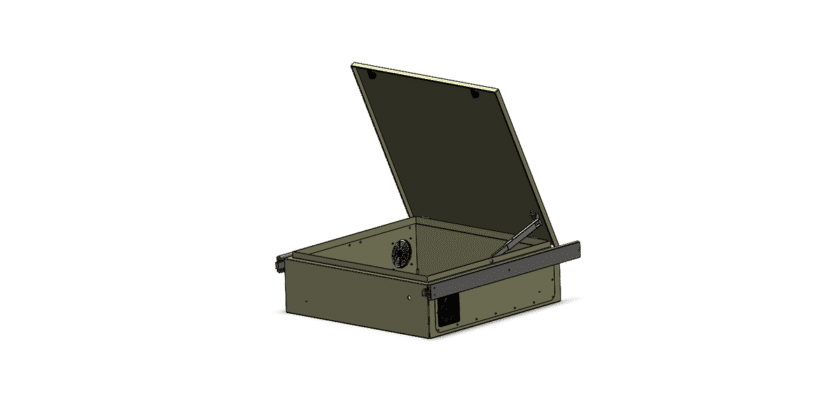

Achieve unmatched efficiency and user safety in your operations with the complete and powerful free drawing set for a modern Control Panel Cabinet. This essential drawing is meticulously designed with ergonomics and functionality in mind, making it the ideal housing solution for Human-Machine Interfaces (HMIs), pushbuttons, indicators, and operator consoles. Whether you are building an automated production line interface or a complex process control station, this drawing provides the precision blueprints needed for a professional finish. Download this high-quality mechanical drawing today from MechStream and significantly streamline your fabrication process.

This design moves beyond a simple box, featuring an optimally angled front panel to improve visibility and reduce operator fatigue during long shifts—an absolutely vital feature for 24/7 industrial environments. The internal structure is designed for easy mounting of back panels, terminals, and necessary wiring ducts, ensuring a clean and manageable installation. Use this invaluable resource to ensure every cutout, hinge, and mounting bracket is perfectly dimensioned, guaranteeing compatibility with standard industrial components. Stop sketching and start building a safer, more efficient operator interface with this proven free tool.

الميزات الرئيسية:

  • Ergonomic Sloped Front Panel: Features a specific angle (e.g., 10-15 degrees) designed to reduce glare and improve the sightline and reach for mounted HMIs and operational controls.
  • Ample Internal Depth: Provides sufficient space behind the front panel for necessary wiring, power supplies, and terminal blocks without crowding the sensitive display hardware.
  • Customizable Cutout Ready: The front panel design is easily modifiable for diverse button, indicator, and screen cutouts, accommodating specific operational requirements.
  • Secure Gasket Sealing: Details the necessary provisions for continuous gaskets around the door and front panel to achieve a high IP rating, protecting internal electronics from environmental contaminants.
  • Built-in Grounding Provisions: Clearly specifies grounding studs and busbar attachment points, ensuring adherence to industrial electrical safety standards and minimizing EMI interference.
