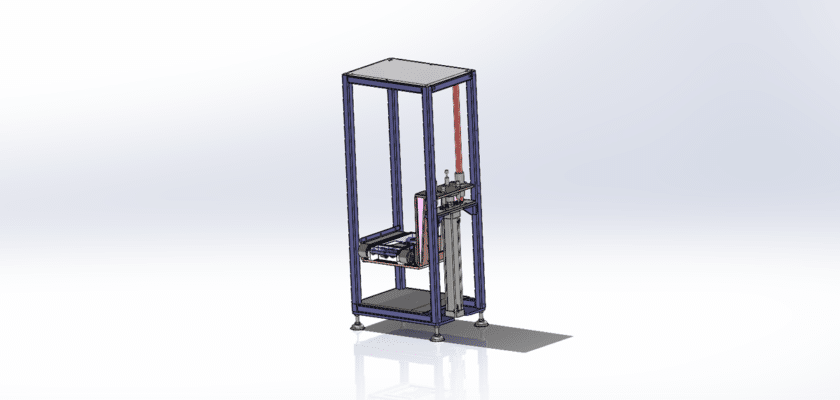

The Gear Linkage Elevator drawing provides a detailed schematic of an elevator system utilizing a gear linkage mechanism for vertical transportation. This design is ideal for applications requiring precise control and reliable operation in both commercial and industrial settings.
الميزات الرئيسية:
- Gear Linkage Mechanism: The drawing illustrates the gear linkage system, showcasing how gears and linkages work together to convert rotational motion from the drive motor into vertical movement of the elevator car. This section highlights gear ratios and mechanical advantages that enhance lifting efficiency.
- Elevator Car Design: Detailed information on the elevator car is provided, including its dimensions, load capacity, and safety features. The design emphasizes stability and comfort for passengers or transported goods.
- Drive System: An overview of the drive mechanism is included, showcasing the electric motor, gear assembly, and any pulleys involved in the operation. Specifications on motor power and torque are highlighted to ensure effective performance under varying loads.
- هيكل الدعم: The robust frame and support system are depicted, ensuring structural integrity and safety during operation. The design includes details on the elevator shaft and how it accommodates the gear linkage system.
- Control Systems: Information on the control systems used to operate the elevator is provided, including user interfaces for selecting floors, speed controls, and safety interlocks that prevent unauthorized operation.
- ميزات السلامة: Essential safety components, such as emergency stop buttons, door sensors, and overload protection systems, are clearly marked to enhance user safety and ensure compliance with industry standards.
- إمكانية الوصول إلى الصيانة: يشتمل التصميم على اعتبارات لسهولة الوصول إلى المكونات الحرجة من أجل الصيانة الروتينية وعمليات الفحص، مما يعزز كفاءة الصيانة ويقلل من وقت التعطل.
- Integration Capabilities: Designated areas for connecting the elevator system to building management systems or other vertical transport mechanisms are highlighted, ensuring seamless integration within the overall infrastructure.
This drawing serves as a vital resource for engineers, architects, and maintenance personnel, offering comprehensive insights into the design, implementation, and operation of gear linkage elevators in various applications.
