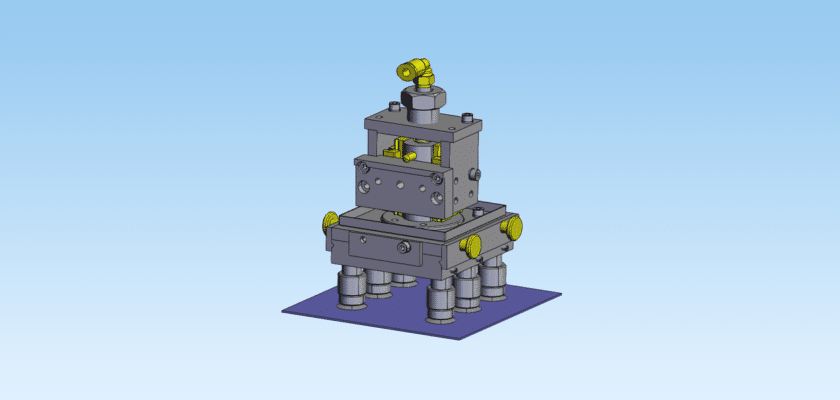

Master the handling of delicate substrates with our professional Glass Circuit Board Adsorption Gripper drawing. In the production of high-end electronics, such as transparent displays and medical sensors, glass-based circuit boards present a unique challenge: they are exceptionally brittle and prone to surface contamination. This technical blueprint provides the mechanical architecture for a high-performance vacuum adsorption system, specifically engineered to lift, move, and position glass substrates without the risk of mechanical clamping pressure or surface scratching.

The design focuses on distributed suction logic to ensure uniform lift across the entire surface area of the glass. By downloading this drawing from MechStream, you receive a detailed assembly including the vacuum manifold, specialized non-marring suction cups, and integrated flow-check valves. This gripper is optimized for cleanroom environments, featuring materials that resist outgassing and specialized filters that prevent microscopic glass dust from entering your vacuum lines. The schematics provide precise mounting details for integration with high-speed robotic end-effectors or manual overhead lifting systems.

Using this professional resource allows your team to implement a “safe-fail” handling solution. The documentation includes the internal layout for vacuum sensors that provide real-time “part-present” feedback to your PLC, ensuring the robot never moves unless a secure seal is confirmed. Whether you are building an automated inspection cell for glass PCBs or a large-scale display assembly line, this drawing provides the structural integrity and fluid dynamic precision required for zero-breakage manufacturing.

الميزات الرئيسية:

  • Non-Marring Suction Interface: Specifications for high-purity silicone or PEEK suction pads that leave zero residue on sensitive optical surfaces.
  • Distributed Vacuum Manifold: Engineered to balance air pressure across multiple points, preventing localized stress and board warping.
  • Integrated Leveling Suspension: Features spring-loaded compensators that allow the gripper to adapt to slight misalignments or uneven surfaces during pick-up.
  • Fail-Safe Check Valves: Detailed design for safety valves that maintain a vacuum seal for several seconds in the event of a sudden power or air loss.
  • Ultra-Lightweight Frame: Optimized geometry using aerospace-grade aluminum or carbon fiber to reduce robotic arm inertia and increase cycle speeds.
