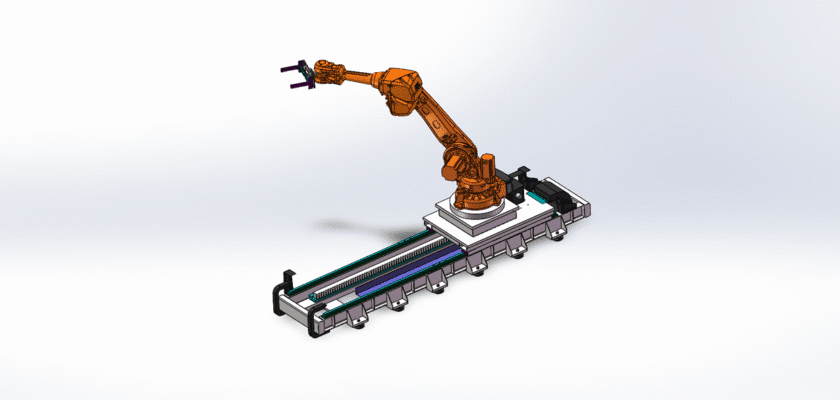

Are you designing a robotic workcell that needs to cover a large area? Our Robot Moving Ground Rail drawing is the comprehensive blueprint you need to expand your automation capabilities. This CAD file details the complete engineering for a linear track system, effectively adding a “7th axis” to a standard 6-axis robot and dramatically increasing its operational range.
A moving ground rail, also known as a robot slide or travel axis, is the solution for tasks that are too large for a stationary robot. This system allows a single robot to tend multiple machines, weld long continuous seams, palletize across numerous stations, or apply materials over large surfaces. Building this “7th axis” requires high precision in manufacturing and assembly to ensure smooth, accurate, and high-speed motion.
This downloadable drawing is a complete, fabrication-ready package for automation integrators and machine builders. It contains all the structural details, drive system specifications, and carriage designs required to build a robust and reliable linear track. Download this file to save countless engineering hours and start building your large-scale automation cell.
الميزات الرئيسية:
- High-Rigidity Track Bed: Provides detailed fabrication plans for the modular, heavy-duty base frame, engineered to be precisely leveled and anchored for vibration-free operation.
- Precision Drive System: Includes specifications for a high-accuracy rack and pinion drive, along with the mounting assembly for a servo-gearbox.
- Linear Motion Guides: Specifies the integration of high-load, high-precision profile linear guide rails and bearing blocks to ensure smooth and accurate carriage travel.
- Robot Mounting Carriage: A detailed drawing of the moving carriage plate, designed for stiffness and featuring a standard mounting pattern adaptable to most major robot brands.
- Integrated Cable Carrier: Includes the mounting design for an e-chain (energy chain) to safely manage all robot cables and pneumatic lines during high-speed travel.
