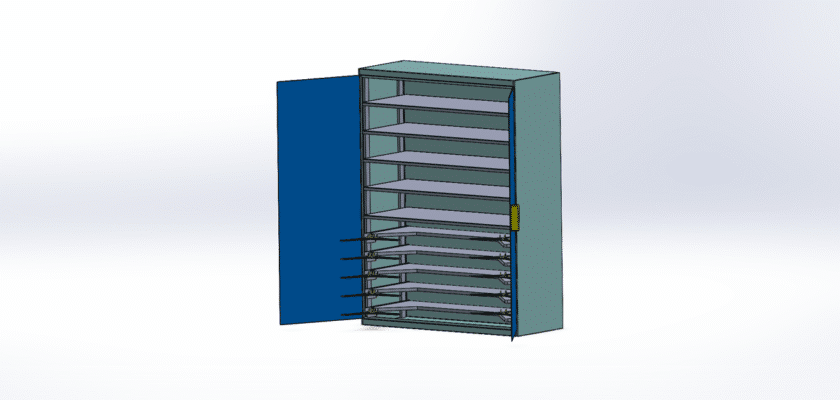

Are you looking to build the ultimate, no-nonsense storage solution for your workshop or garage? Our Standard Tool Cabinet drawing provides the complete, time-tested blueprint for a classic, heavy-duty tool chest. This CAD file is the essential resource for professional fabricators, mechanics, and serious DIYers who want to build a high-quality, reliable cabinet from the ground up.
This is the workhorse design found in professional shops everywhere. It’s not a flimsy, lightweight box; it’s a robust cabinet engineered to hold significant weight and withstand years of hard use. The drawing details the perfect, versatile combination of multi-sized drawers for organizing hand tools and a larger bulk storage compartment for power tools, chargers, and supplies.
Why build your own? Because you can choose to use heavy-gauge steel and premium hardware, resulting in a cabinet that is far superior to most store-bought alternatives. This downloadable package is your complete manufacturing guide. It includes a full cut list, precise dimensions for all sheet metal parts, bend lines, and clear assembly instructions. Stop searching for the perfect cabinet and build it yourself.
الميزات الرئيسية:
- البناء الفولاذي الثقيل: The design specifies robust steel gauges (e.g., 16-18 gauge) for the frame and drawers, ensuring a rigid, long-lasting structure.
- Classic, Versatile Layout: Features a proven combination of multiple, full-extension drawers (for sockets, wrenches, etc.) and a lower bulk storage compartment with a shelf.
- Ball-Bearing Drawer Slides: Details the integration of heavy-duty, ball-bearing slides, ensuring smooth and reliable drawer operation even when fully loaded.
- Central Locking System: Includes the complete mechanism for a single, central lock that simultaneously secures all drawers and the main cabinet door.
- Fabrication-Ready Details: Provides a full bill of materials (BOM), flat patterns for sheet metal parts, and all necessary bend and assembly details.
