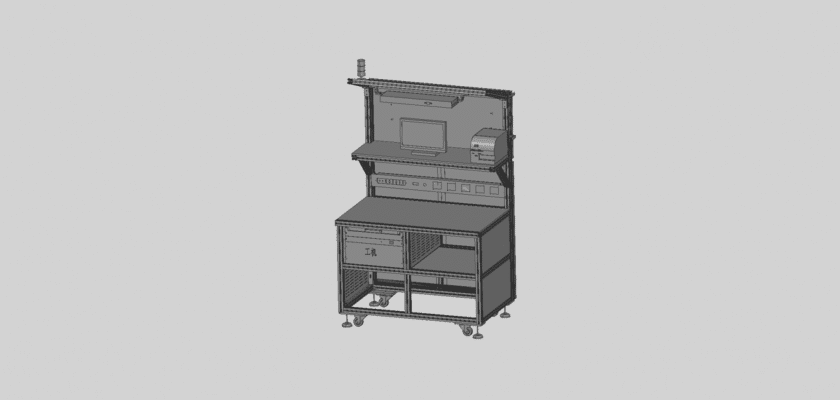

Start building your production or R&D cell with the perfect foundation: our Testing and Assembly Workbench drawing, available for instant download. This comprehensive CAD file is the ultimate resource for manufacturing engineers, lab managers, and technicians tasked with creating efficient, ergonomic, and customized workstations. Whether you are setting up an electronics testing rig, a mechanical sub-assembly line, or a quality assurance station, this drawing provides a proven, professional design.
This free drawing saves you countless hours of design work. It details a robust, modular workbench structure, eliminating the need to model basic frames from scratch. The design is optimized for both testing and assembly, featuring a spacious work surface and a strong superstructure perfect for mounting tools, task lighting, monitors, and test equipment like oscilloscopes or power supplies.
This file is your key to streamlining your facility layout and workflow. Use this CAD model to plan your line, integrate component bins, mount power strips, and ensure your operators have an ergonomic and productive environment. Download this file now to accelerate your project and build a world-class workstation with confidence.
الميزات الرئيسية:
- Heavy-Duty Frame: Features a robust steel or aluminum extrusion (e.g., T-slot) frame for maximum stability and load capacity.
- Ergonomic Work Surface: Provides a large, durable work area (e.g., laminate or ESD-safe) at an optimal height for operators.
- Integrated Superstructure: Includes an overhead gantry/frame for mounting task lighting, tool balancers, monitors, and shelves.
- Modular & Adaptable: Designed for easy customization with standard rails for power strips and component bins.
- Multi-Format CAD: Provided in versatile DWG and STEP formats for easy use in SolidWorks, AutoCAD, and other design platforms.
