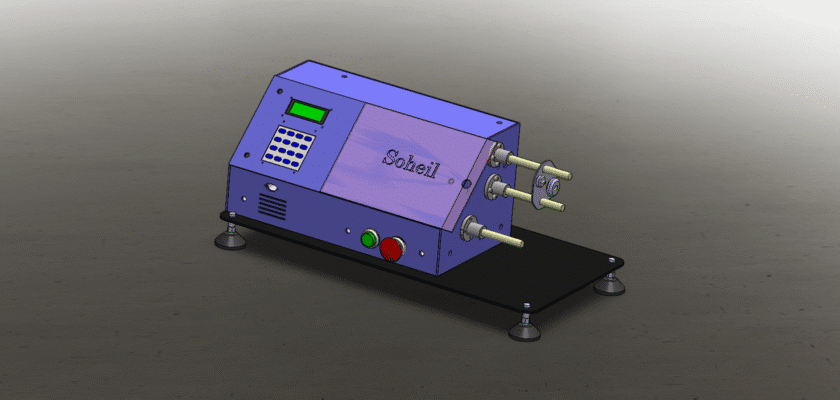

Create perfectly wound coils, spools, and transformers with our comprehensive drawing for a precision winding machine, available now for a free download. This machine is essential for electronics hobbyists, engineers, and manufacturers who need to produce tightly and evenly wound components. Whether you are winding custom inductors, electric motor stators, or spools of fine filament, this design provides the mechanical foundation for achieving professional and consistent results. The blueprint is an invaluable resource for building a dedicated machine for prototyping or small-scale production.
Our engineering drawing details the two critical, synchronized systems of a winding machine: the variable-speed rotating spindle and the linear wire traverse guide. This ensures each layer of wire or filament is laid down perfectly next to the previous one. The file is provided in a universal CAD format, allowing for easy viewing and modification in your preferred design software. Download these plans today to build a capable and precise winding machine that will elevate the quality of your electronic and mechanical projects.
الميزات الرئيسية:
- Synchronized Traverse Mechanism: Features a precision lead screw or belt-driven guide that moves in sync with the spindle rotation to create even, uniform layers.
- Variable Speed Spindle Drive: The design incorporates a motor with speed control, allowing you to manage winding tension and handle various wire gauges and materials.
- Adjustable Bobbin Holder: Includes a flexible fixture design to securely accommodate a wide range of spool, bobbin, and former sizes.
- Complete Fabrication Blueprint: A comprehensive set of mechanical drawings with all the dimensions needed to machine and assemble a fully functional winding machine.
