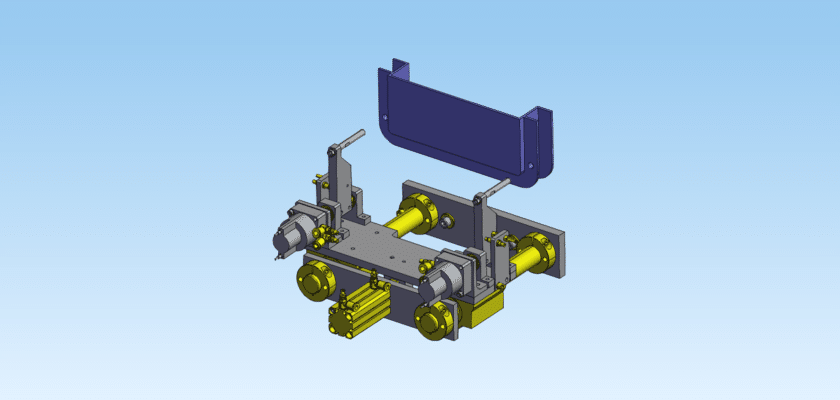

Master the art of package orientation with our professional Box Positioning drawing, the definitive resource for high-speed automated packaging environments. In modern logistics, a “near-miss” in alignment can lead to significant downtime or damaged goods. This technical blueprint provides a comprehensive layout for a multi-stage positioning station, ensuring every carton is perfectly squared and indexed before reaching critical workstations like barcode scanners, weight checkers, or robotic palletizers.

The design focuses on the transition from chaotic flow to structured alignment. By downloading this drawing from MechStream, you get a detailed look at how to implement guiding fences and stop-gates that work in harmony with the conveyor speed. The schematics provide precise dimensions for the lead-in tapers and the mechanical detents required to hold a box stationary without interrupting the upstream flow. This is an essential file for engineers who need to solve orientation challenges in tight spatial footprints where traditional long-range guides won’t fit.

Our documentation goes beyond simple lines; it includes the structural requirements for the mounting brackets and the integration of damping components to handle the kinetic energy of moving boxes. Whether you are working with lightweight corrugated cardboard or heavy industrial crates, this positioning layout is scalable and adaptable. Use this drawing to ensure your next packaging line upgrade meets the highest standards of mechanical precision and operational reliability.

Key Features:

  • Dual-Axis Squaring Logic: Provides the geometric data needed to align both the leading edge and the side profile of the box simultaneously.
  • Impact Damping Design: Features integrated mounting points for shock absorbers to minimize box bounce and noise during high-speed stopping.
  • Quick-Change Adjustability: Includes detailed designs for hand-wheels and scales that allow operators to switch box sizes in seconds.
  • Sensor-Ready Architecture: Pre-calculated mounting slots for photo-electric eyes to ensure the PLC knows exactly when a box is “in position.”
  • Low-Friction Guide Rails: Specifications for ultra-high-molecular-weight (UHMW) plastic liners to ensure boxes slide into position without scuffing.
