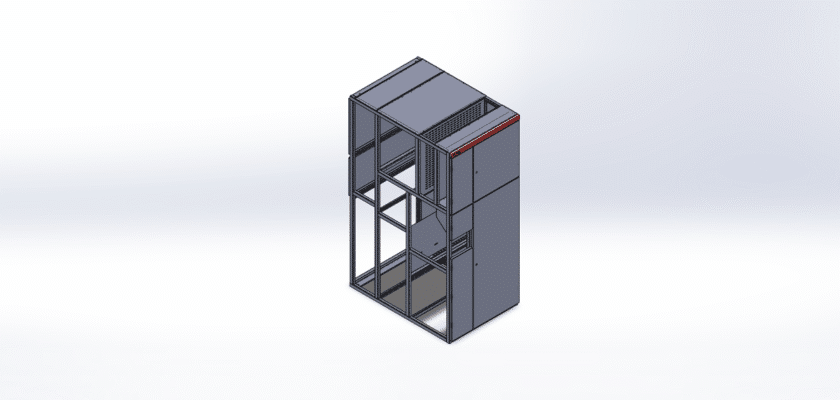

The C-Profile XGN2 Switchgear cabinet is a specialized, metal-enclosed apparatus used in high-voltage distribution systems, typically ranging from 10kV to 35kV. The robust C-profile frame is absolutely critical for the structural integrity and partitioning required to isolate high-voltage components and ensure operator safety. MechStream is delighted to offer a detailed, technical drawing of this standard C-Profile XGN2 structural assembly as a vital free download. This CAD resource provides the fundamental dimensional data, compartment layouts, and assembly interfaces necessary for civil and electrical engineers.

This high-quality free drawing is an indispensable resource for substation designers and equipment manufacturers. It clearly details the rigid construction of the C-Profile frame, the segregation between the main busbar compartment, circuit breaker compartment, and cable compartment—all essential for high-voltage safety standards. By leveraging this precision model, you can confidently plan the substation floor layout, verify cable trench compatibility, and ensure the correct baying (joining) of multiple units. Download your powerful C-Profile XGN2 drawing today, exclusively from MechStream, and establish the foundation for a secure and compliant medium-voltage installation.

Key Features:

  • High-Voltage Compartmentalization: Details the internal structural barriers (C-Profile members) that isolate high-voltage sections for maximum safety and arc-fault containment.
  • Standardized Frame Footprint: Provides the external dimensions and foundation mounting hole locations required for fitting into pre-designed switchgear rooms.
  • Busbar Integration: Shows mounting provisions for the main horizontal and vertical busbars, crucial for power system design and copper planning.
  • Locking and Interlock Points: Specifies key mechanical points for safety interlocks and access doors, ensuring sequential operation compliance.
  • Instant Free Access: Obtain this essential, professional-grade switchgear drawing at no cost for immediate use in mechanical and electrical design software.
