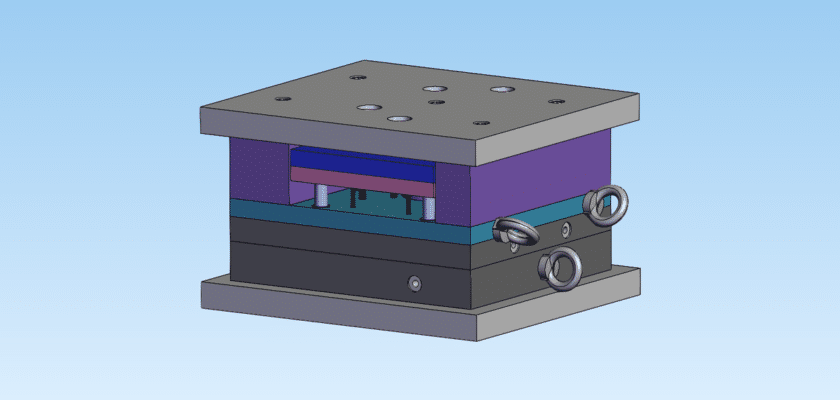

Accelerate your transition to mass production with our comprehensive technical documentation for Die Cast Design. Die casting is the preferred method for creating complex, high-strength metal parts with exceptional surface finishes and dimensional stability. This drawing package provides the foundational engineering data required to design molds for aluminum, magnesium, and zinc alloys. By utilizing these professional schematics, designers can ensure proper metal flow, minimize porosity, and optimize cooling cycles to produce high-quality components at scale.

The provided drawing files offer a deep dive into the critical aspects of mold architecture, including draft angles, parting lines, and runner systems. Understanding the thermal dynamics and hydraulic pressures mapped out in these blueprints is vital for engineers looking to prevent common casting defects like cold shuts or flashing. We provide these high-fidelity CAD resources for free to help you bridge the gap between initial concept and a production-ready mold tool.

Our files are formatted for seamless integration into professional 3D environments, allowing for advanced flow simulation and thermal analysis before any steel is cut. This data-driven approach helps in predicting tool wear and optimizing the cycle time of the casting machine. Download this essential resource today to ensure your die-cast parts meet the rigorous standards of the automotive, aerospace, and consumer electronics industries.

Key Features:

  • Optimized Draft Angles: Precision-engineered tapers designed to ensure easy part ejection without distorting the finished component.
  • Advanced Cooling Circuits: Detailed layouts for internal water channels to maintain consistent mold temperatures and reduce cycle times.
  • Precision Ejection System: Features a robust layout for ejector pins and return pins to prevent part warping during the demolding phase.
  • Integrated Venting Solutions: Specifically designed air vents and overflows to eliminate gas entrapment and ensure high structural density.
  • High-Pressure Seal Interface: Engineered to withstand the extreme hydraulic forces of cold-chamber and hot-chamber casting machines.
