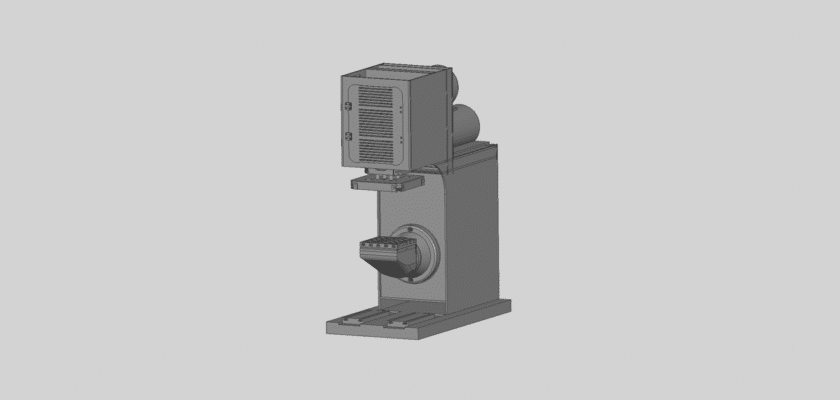

Achieve perfect crimps on cylindrical parts with our incredible free eccentric punch for crimping drawing! This professional-grade blueprint is a game-changer for machinists, toolmakers, and engineers who need a specialized tool for forming or securing cylindrical components. The detailed design provides a precise plan for a punch that uses an eccentric motion to create a uniform, strong crimp, essential for applications in automotive, electronics, and aerospace manufacturing. Our drawing includes all the necessary schematics, from the eccentric shaft and punch head to the mounting fixtures, ensuring you can build a tool that delivers repeatable, high-quality results. Save valuable time and resources on design and fabrication by using this proven resource. Don’t miss this opportunity to get a professional-quality tooling drawing at no cost. Download now and elevate your fabrication capabilities with a tool built for precision crimping.
Key Features:
- Eccentric Motion: The unique design uses an off-center mechanism to generate a powerful, controlled force for a perfect crimp.
- Precision Engineering: All components are accurately dimensioned to ensure proper fit and function, leading to a consistent and reliable crimping process.
- Versatile Application: The blueprint can be adapted to accommodate various cylindrical part sizes and material types.
- Robust Construction: The design is engineered for durability, allowing the punch to withstand high-stress crimping operations.
- DIY-Friendly: This is an excellent project for learning about mechanical linkages, tooling design, and specialized fabrication techniques.
