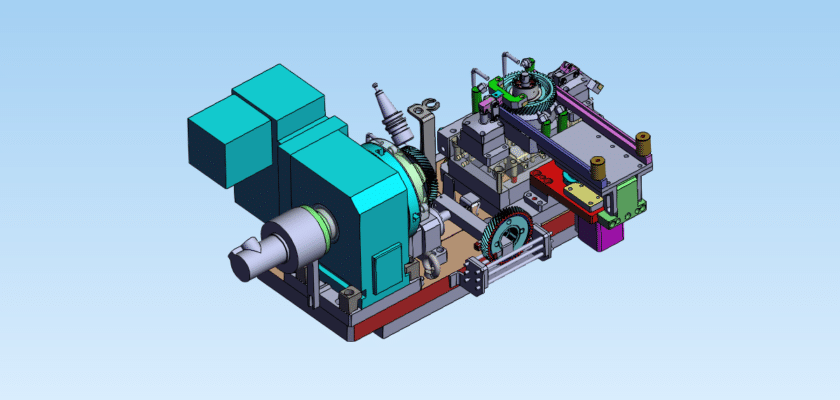

Maximize your manufacturing precision with our high-quality Equipment Drawing of a Hydraulic Clamp for Output Drive Gear. In modern mechanical transmission systems, the output drive gear requires absolute stability during machining and assembly to ensure optimal performance. This professional-grade technical drawing provides a comprehensive blueprint for a robust hydraulic clamping solution specifically engineered for high-torque gear components.
By downloading this resource, engineers and manufacturers gain access to detailed schematics that outline the integration of fluid power with mechanical gripping interfaces. The design focuses on uniform pressure distribution, which is critical for preventing gear deformation while maintaining a rigid hold during intensive operations. Whether you are looking to upgrade your existing production line or designing a new custom fixture, this drawing serves as an essential reference for achieving tight tolerances and reducing cycle times. This document is formatted for clarity, ensuring that every dimension and material specification is easily interpreted by your fabrication team.
Características principales:
- High-Pressure Stability: Engineered to handle the significant radial and axial forces common in output drive gear systems.
- Alineación de precisión: Features specific locating datums to ensure the gear remains perfectly centered throughout the drive cycle.
- Optimized Fluid Circuitry: Includes detailed layouts for hydraulic porting to ensure rapid clamping and unclamping responses.
- Durable Material Specs: Recommended material callouts designed for high-cycle industrial environments and wear resistance.
- Standardized Integration: Compatible with most standard industrial hydraulic power units for easy implementation.
