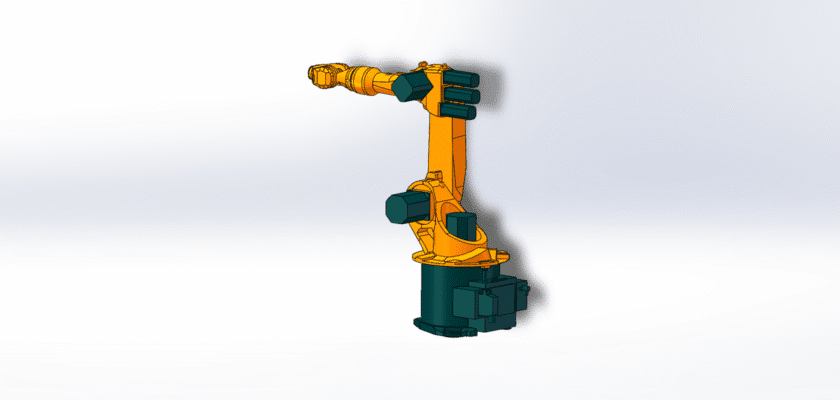

Unlock the power of industrial automation with our free collection of technical drawings for the KR16 robotic arm. This renowned KUKA robot, also known as the KR 16-2 or KR 16-2 KS, is a workhorse in modern manufacturing, celebrated for its high payload capacity and exceptional reach. Our professional-grade blueprints offer an unparalleled look into the intricate mechanical design of this six-axis articulated robot. Whether you are an engineer planning a production cell, a student studying robotics, or a hobbyist building a prototype, these drawings are an invaluable resource. The files are available in multiple formats for compatibility with popular CAD software, allowing you to seamlessly integrate the KR16 into your projects. Download your free KR16 robotic arm drawings today and take the first step towards building high-efficiency, automated systems.
Características principales:
- High-Payload Design: The drawings highlight the robust structural design that allows the KR16 to handle a rated payload of up to 16 kg, making it ideal for heavy-duty material handling, welding, and palletizing tasks.
- Extended Reach and Working Envelope: Explore the detailed schematics that showcase the robot’s impressive reach of up to 1611 mm, providing a wide working area for complex applications in large manufacturing environments.
- Structural and Joint Mechanics: Our blueprints offer a deep dive into the robot’s six articulated axes, revealing the internal mechanics and gear systems that provide precise, high-speed motion with excellent repeatability of ±0.05 mm.
- Versatile Mounting Options: The plans demonstrate how the KR16 can be mounted in various positions, including on the floor, ceiling, and wall, offering maximum flexibility in factory layout and design.
- Integrated Cabling and Protection: The drawings illustrate the internal routing of cables and the robust IP65 protection rating of the robot, ensuring reliability and a clean design suitable for harsh industrial environments.
