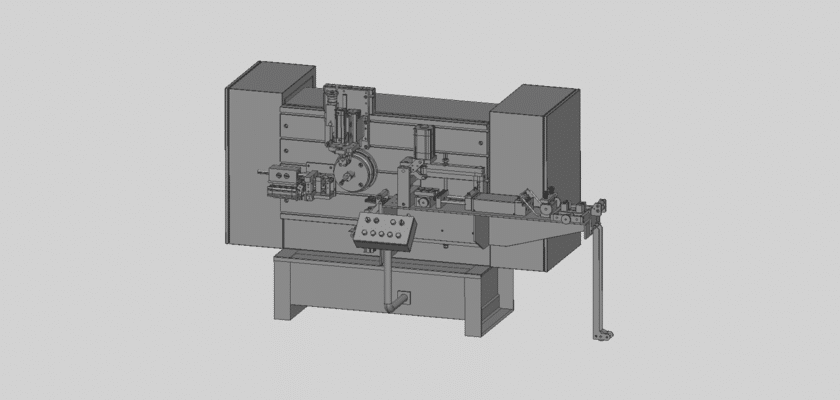

Discover the detailed mechanical and structural design of the SS410 Winder with our free, downloadable drawing. This document is an essential resource for engineers, students, and technicians working in industries that require the precise and efficient winding of various materials, such as wire, cable, or flat strips. The SS410 model is recognized for its robust construction and reliability, making it a staple in sectors from metallurgy to electronics manufacturing. Our drawing provides a clear and comprehensive look at the machine’s core components, including the winding spindle, tension control systems, and precision guide mechanisms. By studying this drawing, you will gain a practical understanding of how this machine achieves consistent and uniform winding, a critical factor in product quality and production efficiency. This resource is perfect for educational purposes, for use as a reference during maintenance, or for developing your own custom winding solutions. It showcases a powerful design optimized for durability and high-speed operation.
Características principales:
- Robust SS410 Construction: The winder is built with SS410 (Stainless Steel 410), a martensitic stainless steel known for its high strength, hardness, and moderate corrosion resistance, ensuring long-term durability in challenging industrial environments.
- Precise Tension Control: The design includes a sophisticated tension control system that ensures a constant winding force, preventing material stretching or snapping and resulting in perfectly wound products.
- Versatile Winding Spindle: The winder is designed to accommodate various spool and reel sizes, allowing for flexibility in production and a wide range of applications, from fine wire to thicker cables.
- Advanced Guide Mechanisms: The drawing illustrates the use of precision guides and traversing systems that ensure uniform layer-by-layer winding, eliminating overlaps and maintaining a consistent final product profile.
- Operación de alta velocidad: Engineered for high-speed performance, the SS410 Winder is designed to maximize production throughput without compromising on the quality and integrity of the wound material.
