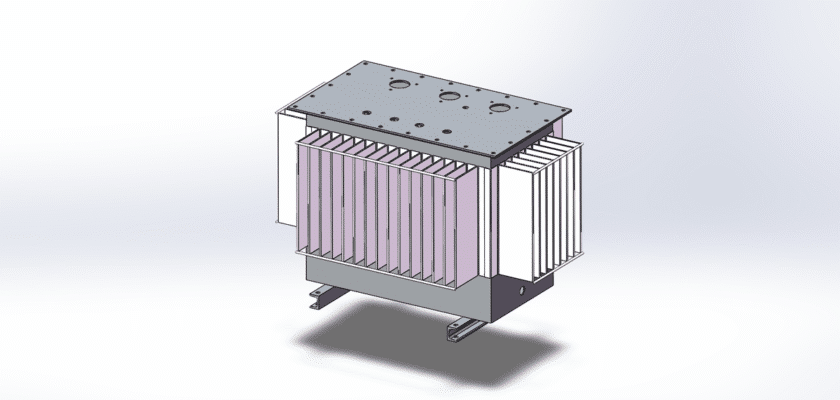

En Transformer is the absolute cornerstone of any modern electrical network, responsible for safely converting electrical energy between different voltage levels for transmission and distribution. This device is critical for ensuring power quality, load management, and system efficiency across industrial, commercial, and residential applications. MechStream is delighted to offer a detailed, technical dibujo of a general distribution transformer model as a vital free download. This comprehensive CAD resource provides the exact dimensional specifications, mounting requirements, and terminal interfaces necessary for precise electrical and civil engineering planning.

Esta alta calidad dibujo libre is an indispensable tool for minimizing installation risks and ensuring compliance with utility and safety standards. It clearly outlines the transformer’s footprint, detailing features like cooling fins (if oil-filled) or ventilation louvers (if dry-type), and the placement of high- and low-voltage bushings. Understanding the physical envelope and required service clearances, as detailed in this model, is essential for performing accurate room design and foundation planning. By leveraging this precision dibujo, you can confidently model site placement, verify acoustic boundaries, and streamline your entire power infrastructure project. Download your powerful Transformer drawing today, exclusively from MechStream, and master your electrical power designs.

Características principales:

  • General Arrangement (GA) View: Provides the overall external dimensions, height-to-bushing centerlines, and mass information crucial for logistics and structural support.
  • Connection Interfaces: Specifies the precise locations and sizes of the primary and secondary terminals for busbar or cable termination.
  • Cooling and Ventilation: Details heat dissipation features (like radiators or louvers) and indicates required clearances for optimal thermal performance.
  • Foundation Details: Includes the base frame and anchoring specifications necessary for secure floor or pad mounting.
  • Instant Free Access: Obtain this essential, professional-grade electrical component dibujo at no cost for immediate use in mechanical and electrical design software.
