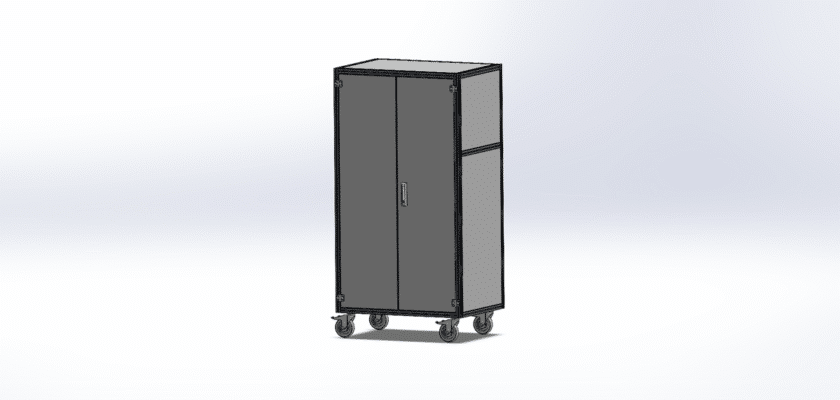

Build a secure housing for your sensitive equipment with our professional ultrasonic detector cabinet drawing. This CAD package is an essential asset for NDT (Non-Destructive Testing) technicians, control system integrators, and fabricators who need to protect critical electronics. At MechStream, we deliver precise, manufacturing-ready blueprints. This drawing details a robust, industrial-grade enclosure designed specifically to house ultrasonic controllers, transmitters, and receivers, shielding them from dust, moisture, and impact.

Accessing this ultrasonic detector cabinet drawing gives you the complete manufacturing plan. You receive detailed 2D layouts, fabrication views, and assembly instructions. This blueprint is engineered to ensure a secure, environmentally-sealed (e.g., IP65/NEMA 4X) solution. It covers the complete construction of the cabinet body, the internal mounting back-plate for DIN rails and power supplies, and the design of the gasketed, lockable front door.

Our design prioritizes equipment safety and serviceability. The drawing package specifies appropriate materials (like stainless or powder-coated steel) and includes exact cutouts for cable glands, HMI displays, and external connectors. It also provides a clear layout for internal component arrangement, ensuring proper airflow and easy maintenance access. This is the complete technical solution for building a reliable, field-ready cabinet for any advanced ultrasonic detection system.

Características principales:

  • Enclosure Fabrication: Full 2D plans for the folded and welded cabinet body, designed for a high IP rating.
  • Door & Seal System: Details for a hinged, gasketed door with secure cam latches to ensure environmental protection.
  • Internal Back-Plate: Complete dimensions and hole patterns for mounting controllers, power supplies, and terminal blocks.
  • I/O & Cable Entry: Specifies locations and sizes for cable gland plates, HMI cutouts, and external connectors.
  • Mounting Options: Includes drawings for both integrated wall-mount flanges and optional pole-mount kits.
