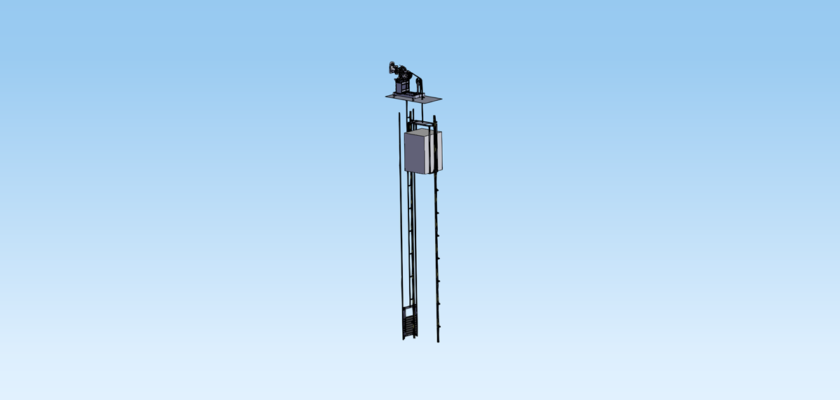

En Automated Parking System and Vehicle Hoist represents the cutting edge of urban spatial engineering. This professional dibujo provides a detailed architectural and mechanical overview of a high-capacity system designed to transport vehicles vertically between multiple levels. Unlike a standard passenger lift, a car elevator must manage significantly higher payloads, varying vehicle wheelbases, and precise platform leveling to ensure safe entry and exit. This CAD model details the heavy-duty structural columns, the reinforced lifting platform, and the high-torque hydraulic or traction drive systems required to move multi-ton loads with absolute stability.
By downloading this comprehensive dibujo, you gain access to a master assembly that covers both the vehicle hoist mechanism and the integrated automated parking logic. The design features high-tolerance guide rails, safety locking pins (dog locks), and laser-guided positioning sensors that ensure the vehicle is perfectly centered before the lift cycle begins. The blueprint also includes the pit requirements, overhead clearances, and the structural interfacing needed to integrate the system into a concrete or steel building core. Whether you are designing a luxury residential “sky garage” or a commercial multi-level parking hub, these files provide the essential engineering data to optimize your footprint.
This resource is optimized for safety and operational reliability. The dibujo includes detailed specifications for emergency braking systems, weight-overload protection, and the platform’s anti-slip surface. Utilizing this pre-verified model allows your engineering team to skip the complex load-bearing simulations and focus on customizing the system for specific vehicle heights and throughput requirements, ensuring a world-class automated parking experience.
Características principales:
- High-Capacity Lifting Platform: Reinforced steel sub-frame in the dibujo designed to handle heavy SUVs and electric vehicles with zero deflection.
- Precision Leveling System: Technical specs for the sensors and controllers that ensure the platform stops perfectly flush with the garage floor.
- Redundant Safety Mechanisms: Integrated mechanical “dog locks” and hydraulic velocity fuses to prevent platform descent in the event of power loss.
- Space-Optimized Pit Design: A compact structural layout that minimizes the required depth of the elevator pit without sacrificing safety buffers.
- Automated Centering Guides: Integrated visual or mechanical cues within the CAD model to assist drivers or automated shuttles in correct vehicle placement.
