Stop settling for flimsy, expensive, or poorly constructed storage. Standard consumer-grade file cabinets often fail under heavy use, with weak drawers and thin metal construction. For a truly robust, long-lasting solution for your workshop or office, you need to build it to a professional standard.

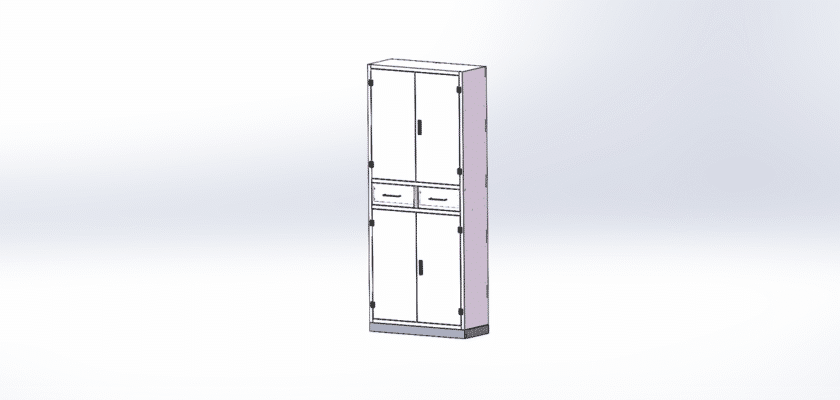

This is why MechStream is offering this comprehensive File Cabinets (With Engineering Drawings) download. This package is not a simple DIY sketch; it is a full set of fabrication-ready blueprints designed by engineers. These drawings provide the exact details needed for professional sheet metal fabrication, ensuring every part aligns perfectly.
Our engineering-level plans detail critical components that others ignore, such as material gauge, bend allowances, structural reinforcements, and precise layouts for heavy-duty drawer slides and locking mechanisms. By downloading our free, detailed CAD and PDF files, you gain immediate access to the plans a professional fabricator would use. Build a cabinet that is secure, rigid, and will last a lifetime.
Key Features:
- Fabrication-Grade Plans: These are true engineering drawings with tolerances, material callouts (sheet metal gauge), and bend-line details.
- Heavy-Duty Construction: Design includes internal gussets and structural reinforcements for a rigid, non-flexing frame.
- High-Capacity Drawer Details: Includes precise mounting specifications for full-extension, heavy-duty ball-bearing slides.
- Integrated Locking Mechanism: The design provides a complete layout for installing a central, single-key locking system to secure all drawers.
- Multi-Format Package: Your download includes PDF, DWG, and STEP files, compatible with all CAM, CNC, and CAD software.
