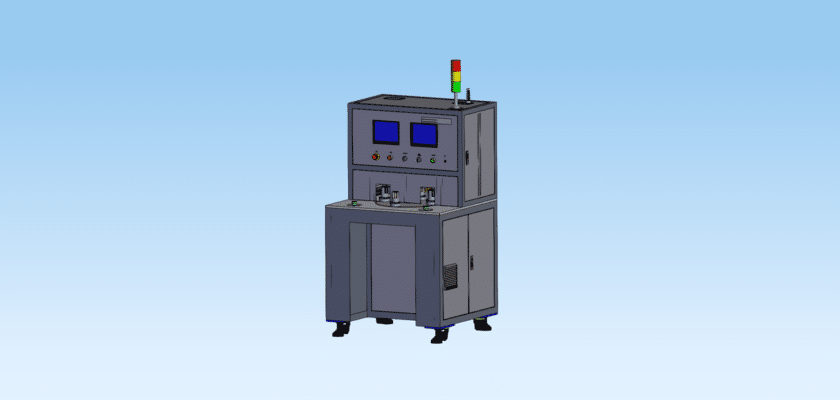

Boost your manufacturing throughput dramatically with this powerful free drawing download: the complete plans for a Four-Station Laser Welding Machine. This machine is the ultimate solution for high-volume, high-speed production, significantly enhancing efficiency by allowing operators to load and unload parts at multiple stations while welding is simultaneously being performed at another. This parallel processing capability is a must-have for industries like medical devices, electronics, and small-component automotive manufacturing, where every second counts. MechStream offers these detailed schematics to help engineers and production managers optimize their workflow and equipment utilization.

The Four-Station Laser Welding Machine design focuses on maximizing the duty cycle of the expensive laser source. It typically incorporates a rotating indexing table or shuttle system, which moves parts between the four distinct zones: loading/unloading, welding, cooling, and inspection. This detailed documentation provides crucial insight into the synchronization of these movements, the integration of safety light curtains, and the precision required for beam delivery across multiple work areas. Gaining access to this professional-grade blueprint is the key to unlocking true industrial scalability and competitive advantage. Download your free Four-Station Laser Welding Machine drawing now and step into the future of efficient fabrication!

Key Features:

  • High Throughput Indexing: Utilizes a rotary or shuttle table to cycle parts seamlessly between the four stations, maximizing laser utilization.
  • Parallel Processing: Enables simultaneous loading/unloading and welding operations, significantly reducing non-productive time.
  • Ergonomic Workstations: Features dedicated zones designed for safe, easy, and efficient component handling by operators.
  • Precision Beam Delivery: Includes schematics for the optical path and focusing unit necessary for repeatable, high-quality laser welds at each station.
  • Comprehensive Multi-View Drawing: The free drawing package includes detailed assembly views, station layout, and control system logic for immediate implementation or study.
