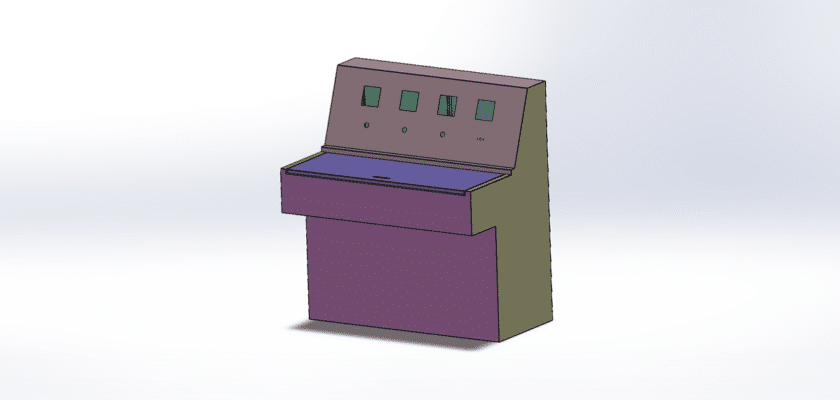

Elevate your automation project with our comprehensive 1-Meter Control Panel drawing. This free CAD file provides a detailed, professional layout for one of the most common and versatile enclosure sizes used in industrial automation and advanced workshops. A 1-meter cabinet offers the perfect balance, providing ample space for components while maintaining a manageable footprint.
This design is the cornerstone for housing your critical control hardware, including PLCs, motor drives (VFDs), power supplies, terminal blocks, and safety relays. Our drawing emphasizes a logical component arrangement, adherence to electrical standards, and ease of assembly and maintenance.
By using this proven layout, you can significantly reduce engineering time, avoid costly layout mistakes, and ensure your panel is both safe and reliable. It provides a clear plan for wire management and thermal control, protecting sensitive electronics from overheating and electrical noise. This download is perfect for system integrators, machine builders, and engineers looking to standardize their control system design. Get this essential drawing today to streamline your build process.
Caractéristiques principales :
- Standard 1M Footprint: A versatile layout designed to fit standard 1000mm (1-meter) industrial enclosures, ideal for medium-scale machine control applications.
- Optimized Component Layout: Features pre-planned spacing for DIN rails and a mounting plate, maximizing usable space for PLCs, breakers, and terminal blocks.
- Gestion intégrée des câbles : Clearly illustrates the placement of vertical and horizontal wire ducts (trunking) to ensure a clean, organized, and easily traceable wiring installation.
- Thermal Management Plan: Includes specific locations and cutouts for ventilation fans and filters, essential for maintaining optimal operating temperatures.
- Grounding & Safety: Details the layout for the main grounding bar (earth bar) and panel-door bonding, forming the foundation for a safe and compliant electrical system.
