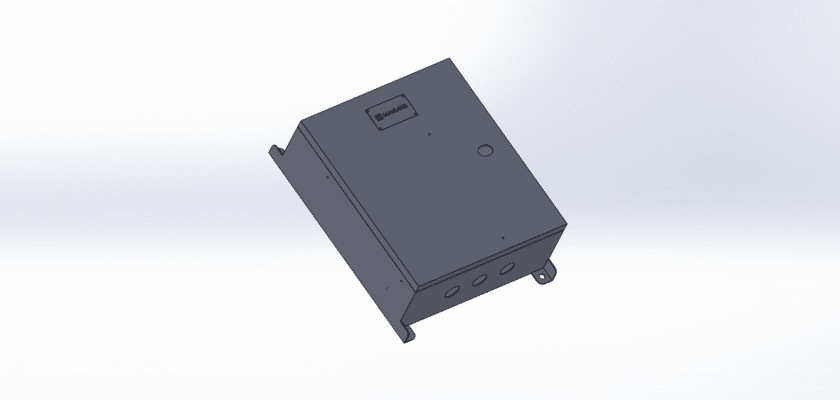

Download the essential manufacturing drawing for a 400X300X150 Indoor Chassis. This technical file provides the complete design specifications for a standard, general-purpose electrical enclosure, perfect for a wide range of indoor applications. With precise dimensions of 400mm (Width) x 300mm (Height) x 150mm (Depth), this chassis is an industry-standard size for housing and protecting sensitive electronic components.
This versatile enclosure is ideal for creating compact control panels, housing PLCs, power supplies, terminal blocks, and network switches in a non-weatherproof environment such as a factory floor, control room, or utility closet. Our professional-grade drawing contains all the critical information needed by sheet metal fabricators, panel builders, and electrical engineers.
By accessing this file, you get exact details for laser cutting, bending, and assembly, including placements for the internal mounting backplate, door hinges, and a standard quarter-turn lock. Streamline your production, ensure component compatibility, and build a reliable, professional-grade control box with this accurate and ready-to-use design.
Caractéristiques principales :
- Dimensions normalisées : Precisely specified at 400mm (Width) x 300mm (Height) x 150mm (Depth), a common size for various control and automation components.
- Indoor Protection: Designed for general-purpose indoor use (e.g., NEMA 1 / IP30 standards), effectively protecting equipment from dust, debris, and accidental contact.
- Fabrication-Ready: This drawing is a complete blueprint for sheet metal fabrication, including material gauge suggestions, bend radii, and all cutout/hole locations.
- Internal Mounting Plate: Includes full specifications for the removable internal back panel, allowing for easy and flexible mounting of DIN rails and other components.
- Secure Access: Features a standard hinged door design with details for a secure quarter-turn latch or lock system to protect internal hardware.
