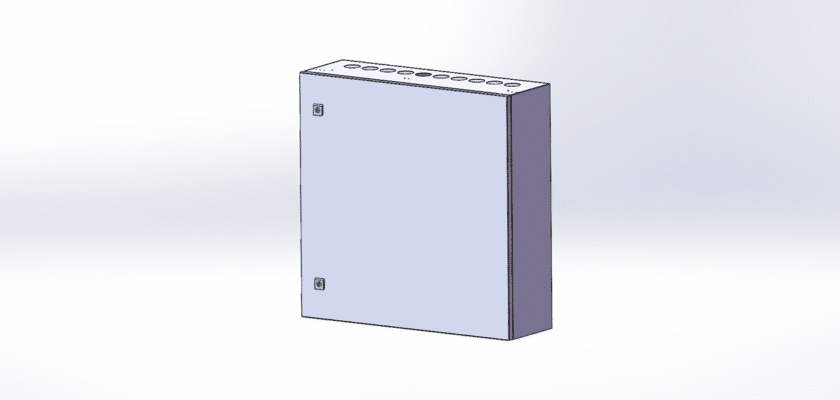

Are you overseeing a significant electrical installation or panel upgrade? MechStream is offering the essential free technical dessin for the large-format 760x765x220 Distribution Box! This enclosure, with its generous dimensions (760mm high, 765mm wide, and 220mm deep), is specifically designed to function as a main or sub-distribution panel, perfectly accommodating a high number of circuit breakers, fuses, power meters, and busbars. It is an invaluable solution for commercial buildings, large industrial facilities, and demanding power infrastructure projects.

This free blueprint is an essential asset for electrical engineers, panel builders, and contractors. The detailed dessin provides precise dimensional data, optimal internal layouts for efficient busbar placement, mounting specifications for standard DIN rail devices, and critical thermal ventilation cutouts. Utilizing this powerful drawing ensures your distribution box fabrication is structurally sound, compliant with safety standards, and offers ample space for future expansion and cable management. Stop compromising on component density. Télécharger the professional-grade 760x765x220 Distribution Box Drawing today and secure the robust foundation for your major electrical power distribution system!

Caractéristiques principales :

  • Large Capacity Dimensions: The specific $760 \times 765 \times 220$ mm size provides maximum surface area for mounting numerous breakers, relays, and power monitoring equipment.
  • Optimized for Busbar Installation: Includes precise mounting specifications for main and neutral busbars, facilitating high-current power distribution within the enclosure.
  • Easy Access and Security: Details robust hinge and locking mechanisms, ensuring easy, safe access for electricians while protecting the panel from unauthorized tampering.
  • Thermal Management Ready: Specifies locations for vents or optional fan cutouts to ensure proper heat dissipation from circuit breakers and other power components under heavy load.
  • Universal Component Mounting: Provides standard drilling patterns and backplate details compatible with common industrial circuit protection devices and DIN rail components.
