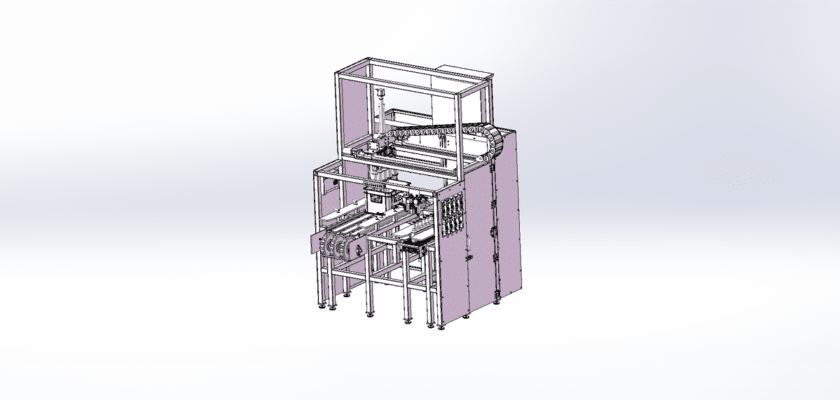

An Automatic Wine Bottle Packing Machine Drawing is a detailed technical illustration that outlines the design and functionality of a machine specifically engineered for the automated packing of wine bottles into cartons or crates. This equipment is essential in the wine industry, ensuring efficient, safe, and organized packaging for storage and distribution.
Caractéristiques principales :
- Disposition générale: A comprehensive view of the machine’s structure, highlighting the arrangement of key components involved in the packing process, such as the bottle infeed area, packing zone, and discharge section.
- Bottle Feeding Mechanism: Diagrams illustrating systems that transport wine bottles to the packing area, which may include conveyor belts, vibratory feeders, or robotic arms designed for careful handling to prevent breakage.
- Carton Forming Station: Information about the area where flat cartons are formed and opened, detailing mechanisms that ensure cartons are correctly shaped and ready for packing.
- Mécanisme de remplissage: Detailed information about the components that fill the cartons with bottles, including layer forming systems and end-of-arm tooling that securely handles multiple bottles at once.
- Mécanisme d'étanchéité: Representation of systems that secure the cartons after packing, which may involve adhesive application or tape sealing to ensure the cartons remain closed during transport.
- Panneau de contrôle:Illustrations de l'unité de contrôle centrale qui gère les opérations de la machine, permettant aux opérateurs de surveiller les processus, d'ajuster les paramètres et d'accéder aux données de performance en temps réel.
- Interface utilisateur: Information about the touchscreen or control panel that provides intuitive access to machine settings, including packing patterns, speeds, and operational adjustments.
- Systèmes de contrôle de la qualité: Diagrams showing integrated sensors that monitor the packing process for accuracy, ensuring that each carton is filled correctly and securely sealed.
- Cadre mécanique: Détails sur les composants structurels qui soutiennent la machine, assurant la stabilité et la durabilité pendant le fonctionnement.
- Caractéristiques de sécurité:Informations concernant les mécanismes de sécurité, tels que les arrêts d'urgence, les dispositifs de sécurité et les capteurs conçus pour garantir un fonctionnement sûr tout au long du processus d'emballage.
- Alimentation électrique:Informations sur les exigences électriques et les systèmes de secours pour assurer un fonctionnement fiable.
This drawing serves as a crucial reference for engineers and technicians involved in the design, assembly, and maintenance of the automatic wine bottle packing machine, ensuring high standards of efficiency, accuracy, and operational effectiveness in wine packaging applications.
