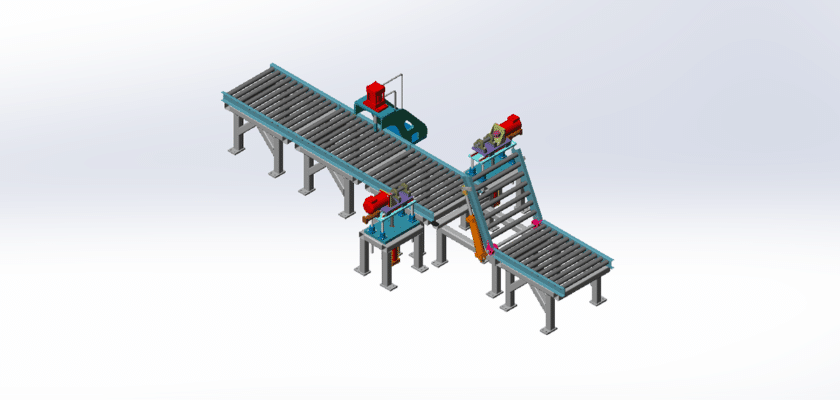

The Conveyor-Assembly Conveyor Equipment drawing provides a detailed schematic of a conveyor system specifically designed for assembly line applications in manufacturing and production environments.

Caractéristiques principales :

  • System Configuration: The drawing illustrates the layout of the conveyor assembly system, featuring straight runs, curves, and elevation changes tailored to facilitate efficient assembly workflows.
  • Spécifications de la ceinture: Detailed information on the conveyor belt type, including material composition, width, and surface texture, ensures compatibility with the components being assembled.
  • Modular Design: The drawing highlights a modular approach, allowing for flexibility and scalability in the assembly process, accommodating various product sizes and configurations.
  • Workstation Integration: Designated areas for integrating workstations along the conveyor line are depicted, providing operators with easy access to tools and components necessary for assembly tasks.
  • Mécanisme d'entraînement: An overview of the motor and drive components, including gear systems and pulleys, is included to illustrate how they ensure smooth and reliable movement of the conveyor.
  • Caractéristiques de sécurité: Essential safety features, such as emergency stop buttons, protective guards, and safety interlocks, are clearly indicated to ensure a safe working environment for operators.
  • Systèmes de contrôle: Information on the control systems that manage conveyor speed, direction, and operation is provided, including wiring diagrams and user interface details for monitoring performance.
  • Accessibilité de la maintenance: Design considerations for easy access to key components for routine maintenance and troubleshooting are included, promoting efficient upkeep and minimizing downtime.

This drawing serves as a crucial reference for engineers, production managers, and assembly line workers, offering comprehensive insights into the design, implementation, and operation of conveyor assembly systems in various industrial settings.
