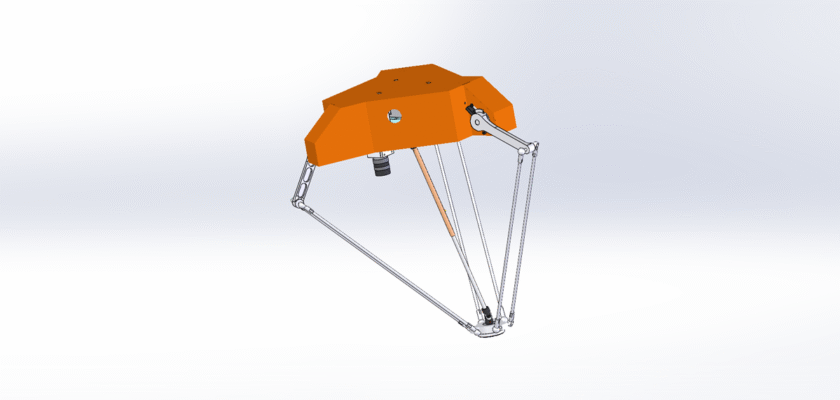

Unlock the world of ultra-fast automation with our exclusive Delta Robot drawing, available for téléchargement gratuit! This comprehensive technical document provides a detailed look into the design and kinematics of a delta robot, a marvel of modern engineering known for its unparalleled speed and precision in pick-and-place applications. Unlike traditional serial robots, the delta robot’s parallel kinematic structure positions all heavy motors on a stationary base, allowing its lightweight arms to move with incredible acceleration and accuracy. This drawing is an essential resource for students, robotics engineers, and automation enthusiasts. It illustrates the intricate system of parallelograms and universal joints that enable the end-effector to move in X, Y, and Z directions without rotation. By studying this drawing, you will gain a deeper understanding of the principles behind high-speed motion control, which is critical in industries such as food packaging, electronics assembly, and pharmaceutical handling.

Caractéristiques principales :

  • Parallel Kinematic Design: The blueprint details the unique parallel arm structure, which ensures that the end-effector remains in a fixed orientation relative to the ground. This design eliminates the need for complex rotational joints at the end-effector, simplifying control and increasing speed.
  • Low Inertia Arms: The drawing highlights how the actuators are mounted on the static base, leaving only lightweight composite arms to move. This low-mass design is the key to the delta robot’s extraordinary speed and acceleration, making it ideal for high-throughput applications.
  • High-Speed Actuation System: The drawing showcases the high-speed servo motors and their connections to the arms. These powerful and responsive motors are the driving force behind the robot’s rapid movements, allowing for hundreds of cycles per minute.
  • Efficient Workspace: The document provides a clear view of the robot’s dome-shaped working volume. While the workspace is compact, it is optimized for high-speed, repetitive tasks directly below the robot’s mounting point, making it perfect for integration over conveyor belts and assembly lines.
