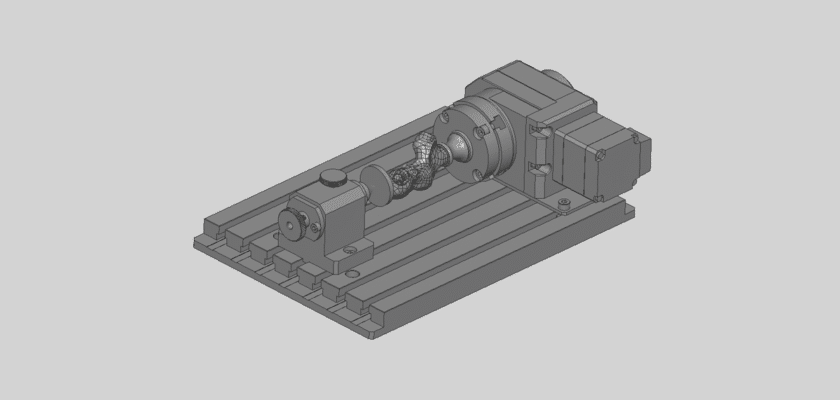

Step into the world of advanced manufacturing with this exceptional Engraving Machine, Milling Machine, Rotary Table drawing. This comprehensive set of blueprints and CAD files is a powerful asset for hobbyists, engineers, and students who are eager to build or understand complex multi-axis machinery. It provides a detailed, professional-grade technical drawing of an integrated system that combines the functions of a CNC engraving machine and a milling machine, further enhanced by the inclusion of a rotary table. This combination allows for not just flat 2D and 3D work, but also for intricate cylindrical and rotational machining, opening up a vast range of creative and industrial possibilities.
The drawing meticulously details the intricate mechanical relationships between the machine’s various components. From the robust frame and precise lead screws to the integrated wiring and spindle mounting, every element is clearly illustrated, ensuring you have the information you need to assemble or modify your own machine. The inclusion of the rotary table expands the machine’s capabilities to a fourth axis, enabling the creation of complex parts like table legs, balusters, and custom pillars. This drawing is not just a guide; it is a catalyst for your next big project, providing the foundation for a truly versatile and powerful piece of equipment.
Caractéristiques principales :
- Versatile Multi-Functionality: The design integrates engraving and milling capabilities, allowing for both fine detail work and more heavy-duty material removal from a single machine.
- 4th Axis Capability: The included rotary table drawing enables four-axis machining, making it possible to work on cylindrical and irregular shapes, which is critical for complex woodturning and metal projects.
- Robust and Stable Design: The blueprints emphasize a sturdy frame and stable components, ensuring high precision and repeatable results even during continuous operation.
- Scalable and Customizable: The drawing provides a modular design that can be adapted to various sizes and specifications, allowing users to customize the machine to their specific project needs.
