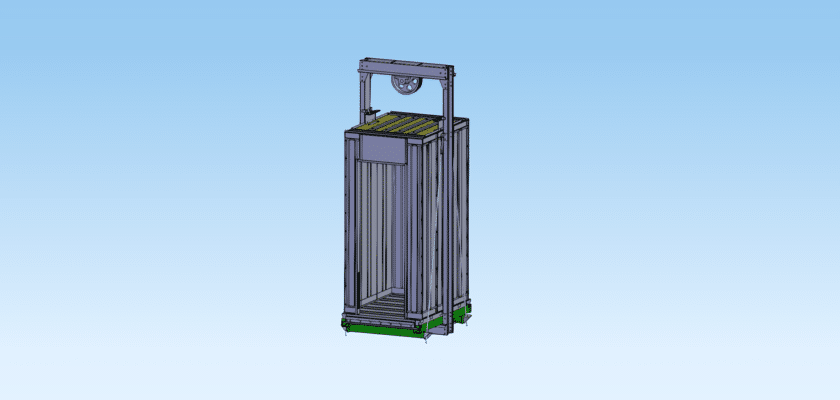

Le High-Temperature Environment Chamber is a critical piece of equipment for stress testing, material aging, and heat treatment processes in controlled industrial settings. This professional dessin features a heavy-duty thermal enclosure designed to operate at sustained elevated temperatures while maintaining exterior safety. Built with a focus on thermal uniformity, the design utilizes a high-grade stainless steel inner liner separated from the outer casing by a thick layer of high-density ceramic fiber insulation. This prevents heat leakage and ensures that the internal atmosphere remains stable, which is vital for the accuracy of scientific experiments and industrial quality control.

By downloading this comprehensive dessin, you gain access to a fully engineered assembly that includes detailed placement for industrial heating elements, high-temperature circulation fans, and thermocouple sensor ports. The design emphasizes air circulation patterns to eliminate “cold spots,” ensuring that every part of the chamber reaches the target temperature simultaneously. Additionally, the CAD files provide the geometry for reinforced door seals and specialized hinges that can withstand repeated thermal expansion and contraction cycles without losing their airtight integrity.

This blueprint is optimized for durability and safety. The dessin includes specific layouts for the control cabinet ventilation and the over-temperature protection circuitry. Whether you are designing a benchtop unit for a research lab or a large-scale industrial drying oven, these files provide the foundational structural data required to build a reliable and efficient thermal testing environment.

Caractéristiques principales :

  • Ceramic Fiber Insulation: Detailed wall thickness specifications in the dessin designed to contain temperatures exceeding 500°C safely.
  • Forced Air Circulation: Integrated high-temperature fan and ducting layout to ensure even heat distribution throughout the internal volume.
  • Thermal Expansion Joints: Engineering details that allow the inner chamber to expand and contract freely without compromising the outer shell’s integrity.
  • Reinforced Sealing System: Specialized gasket groove designs that maintain a vacuum or airtight seal even under extreme heat.
  • Multi-Point Sensor Integration: Pre-defined mounting locations for temperature probes to allow for precise PID control and monitoring.
