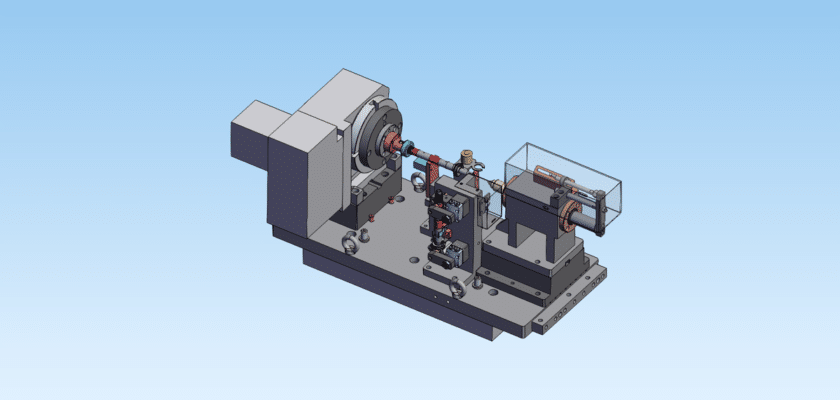

Achieve perfect axial alignment and high-torque stability with our exclusive, free drawing package pour le Intermediate Shaft Hydraulic Fixture! In the automotive and industrial drivetrain sectors, machining intermediate shafts—which often feature complex splines, gear teeth, and varying diameters—is absolutely critical. This specialized hydraulic fixture provides the unmatched clamping rigidity required to handle heavy interrupted cuts during milling or grinding while maintaining sub-micron concentricity. By replacing manual centers with an automated hydraulic system, manufacturers can ensure constant gripping pressure, significantly reducing vibration and extending tool life.
Ce comprehensive technical drawing set provides the detailed blueprints for constructing a high-precision workholding solution for shaft processing. The plans detail the heavy-duty baseplate, the hydraulic tailstock or steady-rest integration, the precision-ground V-blocks or collet interfaces, and the internal manifold routing. Drivetrain engineers, CNC specialists, tool designers, and automotive manufacturers will find these accurate, industry-standard drawings invaluable for building or optimizing high-volume machining cells. Stop risking part runout or chatter due to inconsistent manual clamping. By downloading this critical design asset today, you gain the foundational technical knowledge for building a compliant and highly rigid shaft fixture. Secure your free hydraulic fixture drawing now and master precision shaft manufacturing!
Caractéristiques principales :
- Hydraulic Self-Centering Mechanism: Detailed blueprints specifying the synchronized jaw or collet system that ensures the shaft is perfectly centered on the rotational axis every time.
- Vibration-Dampening Work Supports: Schematics illustrating the hydraulic “smart” supports that stabilize long or slender shafts to prevent deflection during heavy machining.
- Axial End-Stop Positioning: Drawings detailing the hardened adjustable stops used to ensure consistent Z-axis part length and feature registration across production batches.
- High-Pressure Manifold Design: Blueprints showing the internal gun-drilled oil passages that eliminate external hoses, keeping the workspace clear of chips and coolant.
- Interchangeable Gripping Inserts: Details on the modular jaw design, allowing the fixture to be rapidly reconfigured for different shaft diameters and lengths.
