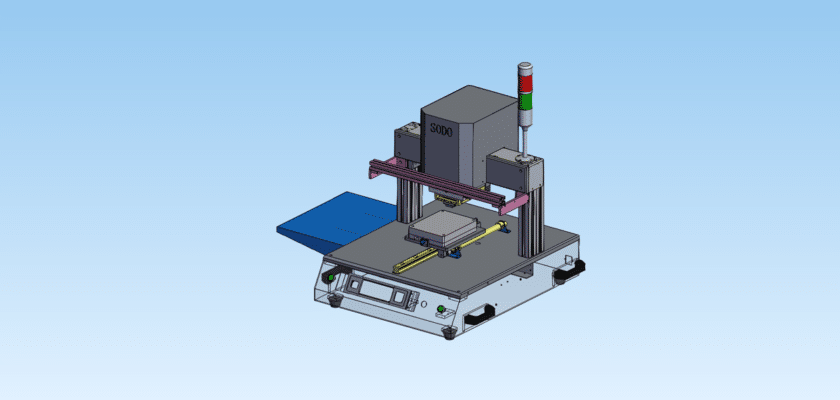

Welcome back to MechStream, your leading platform for free mechanical drawing downloads! We are excited to present this exceptional collection of technical dessins for the sophisticated Machine de soudage par impulsions. Pulse welding, a variant often used in MIG/MAG processes, delivers short, high-current pulses to the weld pool, offering unparalleled control over heat input and resulting in superior quality welds, especially when working with thin materials or challenging alloys like aluminum. This collection is a must-have resource for professional welders, R&D engineers, and technical educators focused on achieving high-precision fabrication.
By downloading these detailed machine drawings, you gain access to the core engineering behind these modern welding systems. The files detail the complex circuitry, power source configurations, wire feed mechanisms, and torch assemblies unique to Machine de soudage par impulsions technology. These documents are vital for troubleshooting, customization, or for deeply understanding the operational theory that makes pulse welding so effective. Don’t miss this amazing opportunity to instantly download and leverage this powerful engineering knowledge. Enhance your technical library and streamline your next fabrication or maintenance project with these essential plans from MechStream.
Caractéristiques principales :
- Detailed Power Source Design: Includes schematics illustrating the inverter technology and microprocessor controls essential for generating and managing the complex current pulses.
- Wire Feeder Mechanism: Provides precise dessin details for the feed motor, rollers, and drive system, which are crucial for consistent and stable wire delivery during the pulse cycle.
- Process Control Interfaces: Offers technical layouts of the control panel and feedback loops that allow operators to finely tune the pulse frequency and amplitude.
- Torch Assembly Diagrams: Detailed views of the welding torch components, including liners, tips, and gas nozzles, ensuring proper maintenance and optimized gas flow.
- Accessibilité instantanée : Tous dessin files are available for immediate, free download in industry-standard formats, ensuring compatibility and ease of use in professional environments.
