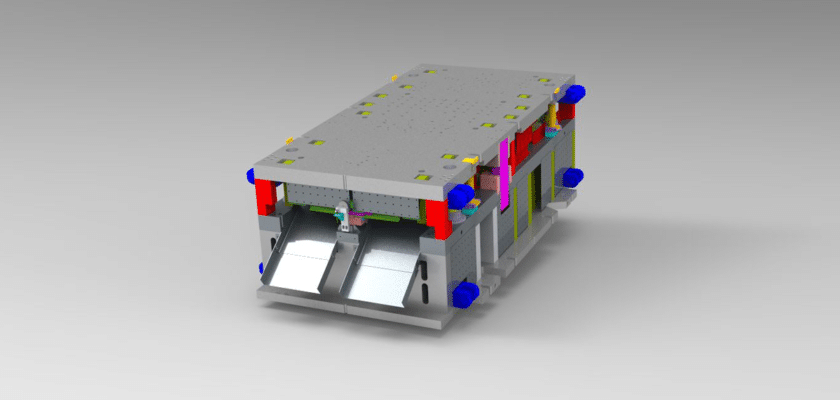

Streamline your fabrication workflow with our high-quality Sheet Metal Part CAD drawing, available for free download. In modern engineering, the transition from a 3D model to a flat pattern requires precise calculations for bend allowance, k-factor, and material thickness. This technical dessin serves as a perfect example of a production-ready component, featuring optimized geometry that accounts for standard manufacturing constraints. Whether you are using laser cutting, CNC punching, or press brake forming, this resource provides the clear dimensional data needed to produce accurate parts every time.
By downloading this asset, you can analyze the essential features of professional sheet metal design, including relief notches, hole placements relative to bend lines, and corner treatments. This specific dessin illustrates a multi-bend component, providing a roadmap for how to document dimensions for both the folded state and the unfolded blank. At MechStream, we prioritize accessibility and technical depth, ensuring our community has the best resources to bridge the gap between digital concepts and physical metal products. Download this part template today to refine your design skills and ensure your sheet metal projects are optimized for cost-effective, high-precision manufacturing.
Caractéristiques principales :
- Accurate Flat Pattern: Includes a 1:1 scale unfolded view with clearly marked bend lines and directions for immediate production.
- DFM-Optimized Geometry: Designed with industry-standard hole-to-edge clearances and minimum bend radii to prevent material cracking.
- Detailed Bend Table: Features a comprehensive chart specifying bend angles, radii, and deductions for various common materials.
- Standard Gauge Specifications: Layout is optimized for common sheet thicknesses, ensuring compatibility with standard stock materials.
- Clean Laser-Ready Paths: Drawing geometry is cleaned of redundant lines, making it ready for direct import into CAM software for cutting.
