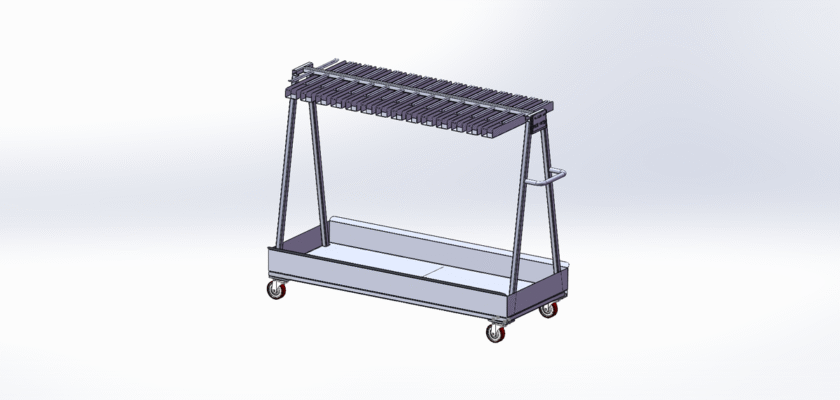

Streamline your on-site electrical work with our complete voltage cable tool cart drawing. This CAD package is an indispensable resource for electrical utility contractors, high-voltage technicians, and maintenance teams. At MechStream, we provide robust, build-ready blueprints for specialized field equipment. This drawing details a heavy-duty, mobile workstation designed to safely transport, organize, and deploy the specific tools required for cable splicing, testing, and termination.
By accessing this voltage cable tool cart drawing, you get the complete plan to fabricate a highly efficient and safe mobile solution. The file includes detailed 2D fabrication views, structural frame assembly, and a full layout of all storage features. This blueprint is engineered to handle the unique demands of field technicians, providing a dedicated space for heavy crimpers, cable cutters, test equipment (like hi-pot testers), and essential personal protective equipment (PPE).
Our design prioritizes ruggedness and safety. The drawing specifies a heavy-duty steel chassis, large all-terrain wheels for easy mobility across job sites, and a non-conductive work surface for added protection. The cart includes integrated cable reel holders, lockable compartments to secure valuable test gear, and designated holders for grounding equipment. This is the complete technical blueprint for building a professional cart that enhances safety and productivity.
Caractéristiques principales :
- Heavy-Duty Chassis: Full fabrication details for the welded steel frame, built for extreme durability.
- Specialized Tool Storage: Includes plans for deep drawers and custom holders for large cable crimpers, cutters, and test sets.
- Cable Reel Holders: Integrated side-mount brackets designed to hold spools of cable or grounding conductors.
- All-Terrain Mobility: Specifies large-diameter, non-conductive wheels to easily navigate uneven job site terrain.
- Safety & Work Surface: Details a non-conductive, high-impact tabletop and integrated grounding lug.
