A reliable, low-impedance grounding system is the single most important safety feature of any electrical installation. The Grounding Cabinet (or Earthing Terminal Cabinet) acts as the central heart of this system, providing a secure, inspectable, and organized connection point for all the equipotential bonding conductors in a facility, data center, or substation.

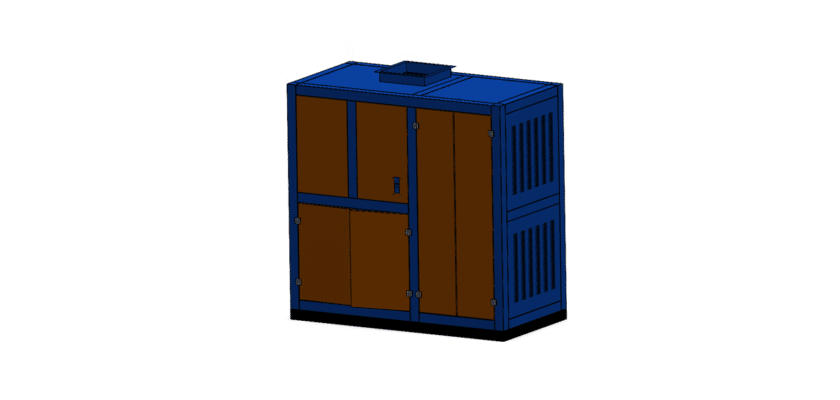

Designing a custom cabinet that is compliant, safe, and can handle massive fault currents is a serious engineering task. MechStream now offers this professional Grounding Cabinet drawing, providing a complete fabrication blueprint for a heavy-duty, code-compliant enclosure.
This is not just a drawing for a metal box. Our schematic details the critical internal component: the main copper earthing busbar. The plan includes its precise mounting, isolation from the cabinet, and a pre-drilled tap pattern for a wide variety of conductor lug sizes. By downloading our free CAD and PDF files, you can ensure your facility’s grounding system is built to the highest standard of safety and reliability.
Key Features:
- Main Busbar Design: Includes detailed fabrication and drilling patterns for a heavy-gauge copper earthing busbar.
- High-Amperage Ready: Engineered to safely terminate multiple large-gauge grounding conductors from main equipment and building steel.
- Safety & Compliance: Design ensures proper electrical clearance and isolation, adhering to common IEC and NEMA safety standards.
- Secure Enclosure Plan: Provides plans for a robust, IP-rated enclosure with a hinged, lockable door for secure, authorized access.
- Insulator Mounting: Specifies the layout for high-strength insulators to mount the busbar and isolate it from the cabinet chassis.
