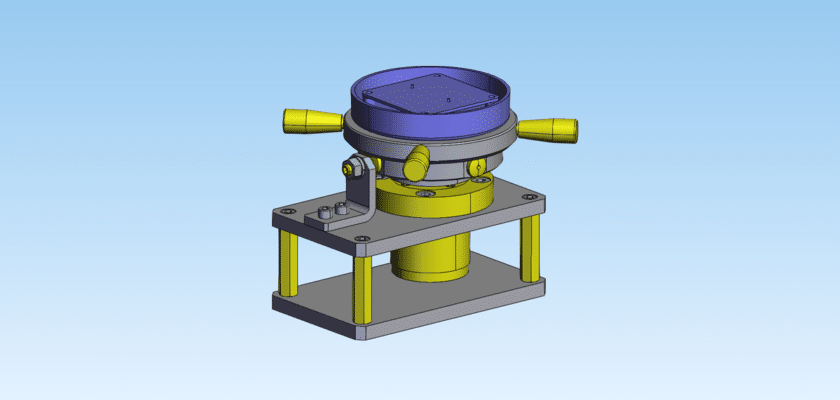

Upgrade your workshop capabilities with our professional-grade Manual Indexing Turntable drawing. This mechanical masterpiece is designed for engineers and machinists who require high-precision angular positioning for tasks such as drilling, milling, or assembly. Unlike standard rotary tables, an indexing turntable allows the user to rotate a workpiece to specific, repeatable increments with extreme accuracy. This drawing provides a detailed blueprint for a robust indexing mechanism, typically utilizing a plunger-and-hole or a gear-based detent system to lock the table securely at predetermined intervals.

The design focuses on structural rigidity and zero-backlash performance. The mechanical architecture ensures that once the table is indexed, it remains perfectly stationary under load, preventing any deviation during machining operations. The provided CAD resources include comprehensive views of the base casting, the rotating platter, and the critical indexing plate geometry. Whether you are building a custom fixture for a vertical mill or a specialized assembly station, this resource offers the technical foundation needed to achieve professional results without the cost of expensive automated equipment.

By downloading this technical drawing, you are accessing a versatile design that can be customized for different indexing counts (e.g., 15, 30, or 45-degree stops). The documentation covers material selection, such as using ground tool steel for the indexing pins to ensure longevity and wear resistance. Streamline your production of equilateral parts and circular patterns by integrating this reliable manual indexing solution into your workflow.

Key Features:

  • Positive Locking Mechanism: Features a high-precision spring-loaded plunger system that ensures the table snaps into the exact angular position every time.
  • 360-Degree Graduation: Includes detailed layouts for laser-etched or engraved scale markings for quick visual reference between indexed points.
  • High Load Bearing Capacity: The internal race and pivot design are engineered to support significant axial and radial loads during heavy-duty drilling.
  • Adjustable Friction Brake: Incorporates a manual locking handle to provide additional stability and vibration dampening once the desired position is reached.
  • Versatile Mounting Interface: The platter design includes standard T-slots or threaded holes to accommodate a wide variety of clamps and workholding jigs.
