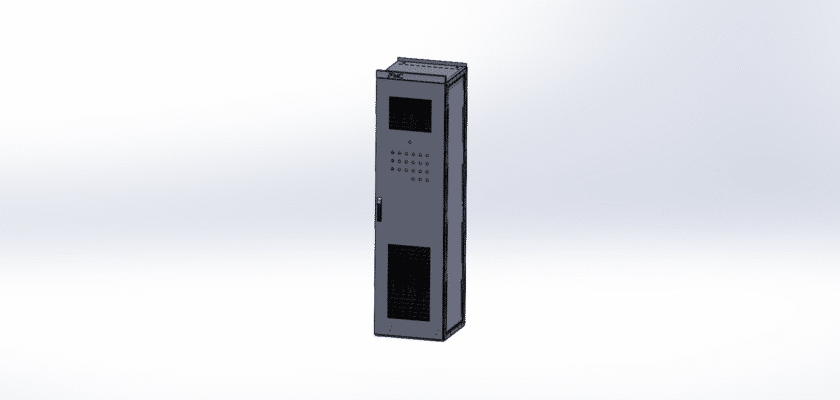

In search of high-standard mechanical drawings for robust Network Server Racks? MechStream provides a crucial collection of free CAD files and detailed engineering documentation for industry-standard data center enclosures, available for immediate and complimentary download. Network server racks are the foundational elements of modern data centers and server rooms, requiring meticulous design for equipment compatibility, airflow management, structural load capacity, and secure access.
Our downloadable Network Server Racks drawings cover a range of configurations, focusing primarily on standard 19-inch rack widths and varying heights (e.g., 42U) and depths. The schematics provide meticulous details on EIA-310 standard mounting rails, optimized ventilation systems (perforated doors, chimney tops), integrated cable management pathways, and high-security locking mechanisms. Whether you are a data center planner, a hardware manufacturer, or a student focusing on network infrastructure, these professional blueprints are a vital resource. Utilizing these accurate drawings ensures optimal equipment density, thermal efficiency, and compliance with industry best practices. All files are provided in widely compatible CAD formats for seamless integration. Download your free Network Server Racks drawing today and build your high-performance data infrastructure!
Key Features:
- Industry Standard: Drawings adhere to EIA-310 specifications for 19-inch rack mounting compatibility.
- Thermal Management: Includes detailed schematics for high-airflow doors and integrated cooling provisions.
- Structural Load: Focuses on frame reinforcement necessary to support heavy server and networking gear.
- Instant Free Access: Obtain professional, manufacturing-ready technical files instantly at zero cost.
- Data Center Essential: The core reference for designing and fabricating reliable server housing solutions.
