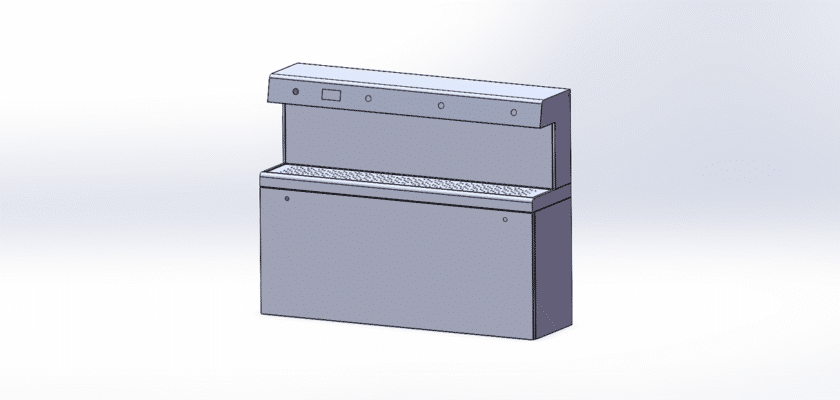

Gain instant access to our expertly detailed New Water Dispenser drawing, a crucial resource for appliance designers, mechanical engineers, and product development teams. Whether you’re designing a Point-of-Use (POU) system or a traditional bottled water cooler, this free MechStream download provides a comprehensive technical blueprint showing the internal layout and construction of a modern water dispenser.

Understanding the integration of the cooling/heating systems, water tanks, plumbing, and structural housing is key to developing reliable and efficient appliances. This drawing package offers a complete, professional template, saving you significant R&D and drafting time. It clearly illustrates the typical arrangement of components like the compressor (for cooled models), heating element/tank (for hot water models), reservoirs, valves, tubing, and the main chassis.

This download includes versatile DWG, DXF, and PDF formats, ensuring seamless compatibility with your preferred CAD software. Use it as a reference for a new design, for integrating specific vendor components, or as a teaching tool for appliance construction. Download the files today to accelerate your design process and enhance your understanding of water dispenser engineering.

Key Features:

  • Internal Component Layout: Shows the arrangement of key functional parts, including hot/cold tanks, compressor/cooling system, heating elements, and main control board within the chassis.
  • Water Plumbing Schematic: Details the typical routing of water lines, connection points for inlet/bottle interface, solenoid valves, and dispensing taps.
  • Structural Frame & Housing: Provides the sheet metal design for the external casing and internal support structure, including assembly details.
  • Component Mounting Points: Includes specific locations and bracket designs for mounting the compressor, water tanks, PCB, and other essential hardware.
  • User Interface Integration: Shows cutouts and mounting provisions for dispensing levers/buttons, drip tray, and indicator lights or a small display.
