Protecting sensitive electronics outdoors is a severe engineering challenge. Standard indoor-rated boxes fail immediately when exposed to the elements. Rain, humidity, and airborne dust lead to water ingress and corrosion. Worse, direct sunlight (solar loading) can superheat an enclosure, cooking expensive PLCs, telecom gear, and battery backups, leading to catastrophic system failures.

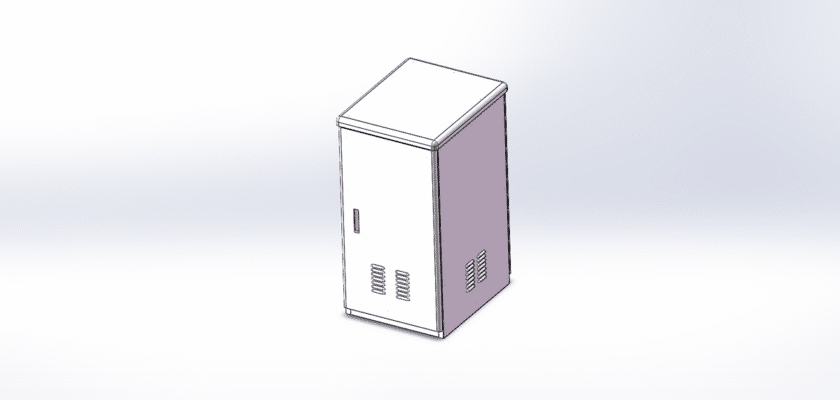

MechStream now provides the definitive solution: a professional Outdoor Cabinet drawing. This is not a simple storage box plan; it is a comprehensive fabrication blueprint for a heavy-duty, environmentally sealed enclosure designed for mission-critical applications (like 5G/telecom, traffic control, or remote automation).

This engineering package details the construction of a NEMA 4X-rated cabinet, designed to be completely dust-tight and waterproof. . The core of the design is its robust sealing system, featuring a “knife-edge” return flange and a continuous, foamed-in-place gasket. To combat solar heat gain, our plan includes an integrated solar shield (sun shield) roof. This feature is critical for passive cooling, reflecting sunlight and creating an air gap that keeps internal temperatures stable. The drawing also specifies a secure, 3-point locking mechanism to protect your assets from vandalism or unauthorized access.

By downloading our free CAD, STEP, and PDF files, you get the complete plans to build a cabinet that offers total environmental protection.

Key Features:

  • NEMA 4X / IP66 Weatherproof: Engineered with a knife-edge flange and a seamless foamed-in-place gasket for a 100% waterproof and dust-tight seal.
  • Solar Shield Roof: Includes an integrated sun shield (drip-top) to reflect direct sunlight and reduce internal heat buildup (solar load).
  • High-Security Latching: Features a 3-point rod latching system (handle-operated) to ensure a secure, tamper-resistant seal.
  • Corrosion-Resistant Design: Optimized for fabrication from 304/316 Stainless Steel or 5052 Aluminum for maximum lifespan in harsh environments.
  • Flexible Mounting: The drawing includes details for both a heavy-duty pole/wall mounting flange and a separate ground-mount (pad-mount) plinth.
