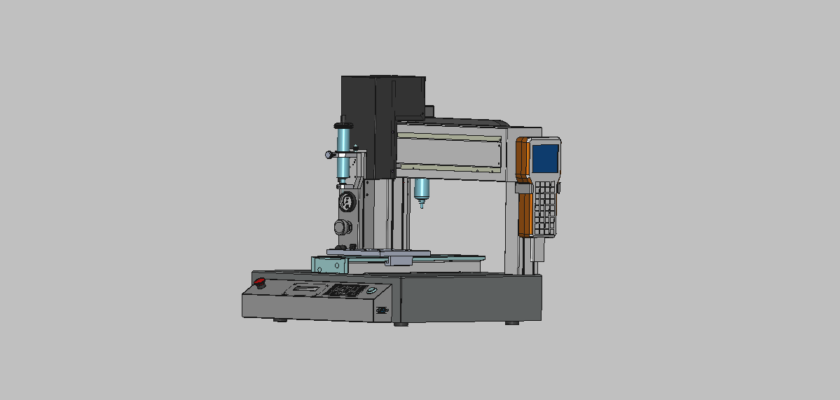

This comprehensive drawing of the 300mm Stroke Three-Axis Glue Dispensing Machine showcases an advanced system engineered for precise adhesive application across various industrial applications. Featuring a three-axis motion control, the machine ensures accurate placement and consistent dispensing of glue, making it ideal for complex assembly tasks.
Key highlights of the drawing include:
- 300 Stroke Capacity: Designed for high-volume production, allowing for multiple strokes to optimize workflow and efficiency.
- Three-Axis Control: Enables flexible movement in X, Y, and Z directions, accommodating diverse shapes and sizes of components.
- Interface amigável ao usuário: Simplifies operation and programming, allowing for quick adjustments and setup for different projects.
- Robust Construction: Built with high-quality materials to ensure durability and reliability in demanding manufacturing environments.
- Precision Dispensing Mechanism: Ensures uniform application of adhesive, reducing waste and enhancing product quality.
This drawing serves as an essential resource for engineers and manufacturers looking to implement efficient glue dispensing solutions in their production lines.
