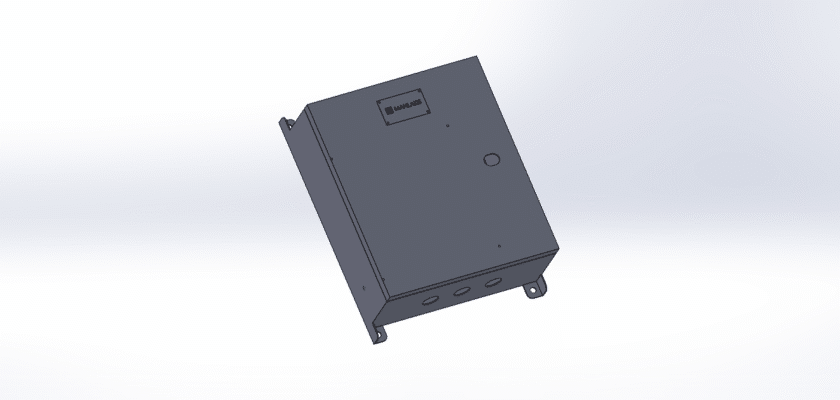

For electrical panel builders and automation engineers, the 400X300X150 Indoor Box is a ubiquitous, standardized enclosure size for housing smaller control systems, terminal blocks, and electronic interfaces. MechStream is delighted to offer the detailed technical desenho of this essential component as a valuable free download. This CAD model provides the precise dimensions (400mm Width x 300mm Height x 150mm Depth) and internal mounting details required for effortless design integration and professional fabrication. Accessing this accurate blueprint is critical for achieving reliable, safe, and compact installations in non-harsh environments.

Esta alta qualidade desenho livre eliminates the need to measure physical prototypes or rely on generic models. It includes all necessary specifications for sheet metal fabrication, detailing the material thickness, door hinges, and the precise cutouts for cable entry and mounting. The size is optimally suited for applications like building security panels, small PLCs, or relay boxes. By leveraging this precision desenho, you can ensure every internal component fits perfectly, and that the final physical box meets your project’s dimensional constraints. Baixe seu powerful 400x300x150 Indoor Box drawing today, exclusively from MechStream, and accelerate your time from design to deployment.

Principais recursos:

  • Dimensões padronizadas: Precisely specified at 400mm (W) x 300mm (H) x 150mm (D), making it compatible with a wide range of standard electronic and electrical components.
  • Fabrication-Ready Blueprint: Contains all necessary sheet metal details, including bend radii, hole patterns, and material suggestions for easy manufacturing.
  • Internal Mounting Detail: Includes specifications for the internal backplate, allowing for flexible positioning of DIN rails, terminal blocks, or component brackets.
  • Secure Closure: Details a standard hinged door design with options for simple latch or lock mechanisms to protect internal hardware from unauthorized access.
  • Instant Free Access: Obtain this essential, professional-grade enclosure desenho at no cost for immediate use in mechanical and electrical design software.
