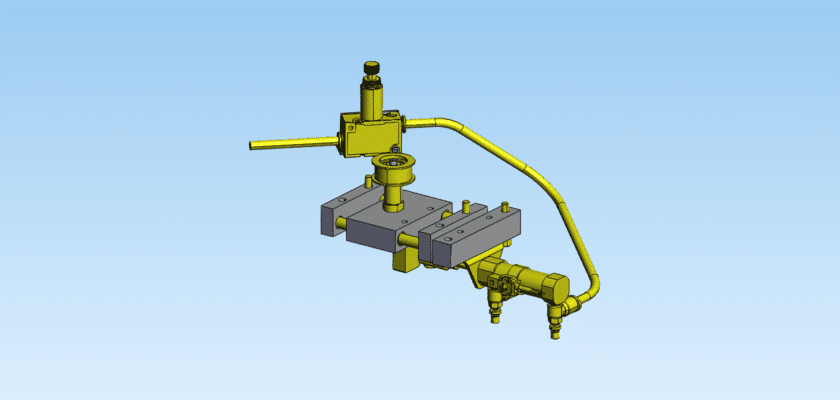

Maximize the lifespan and efficiency of your power transmission systems with our professional technical documentation for the Belt Tensioning Device. Improper belt tension is a leading cause of premature bearing failure and power loss in industrial machinery. This specialized assembly is designed to provide consistent, adjustable pressure on drive belts, ensuring smooth power transfer and preventing the slippage that leads to heat buildup and belt glazing.
The provided desenho package includes detailed exploded views and material specifications for the tensioner arm, pulley interface, and internal spring or hydraulic dampening systems. By utilizing these free schematics, engineers can accurately integrate a tensioning solution that compensates for belt stretch over time without requiring constant manual adjustment. These resources are indispensable for developing robust conveyor systems, HVAC blowers, and automotive engine layouts where reliability is the primary goal.
Our CAD-ready files are compatible with all major engineering software, allowing you to simulate the tensioner’s range of motion and force vectors. This level of detail ensures that your drive system remains quiet, efficient, and durable under varying load conditions. Download these professional blueprints today to eliminate drive belt maintenance headaches and optimize your mechanical design.
Principais recursos:
- Automatic Adjustment Range: Designed to maintain optimal tension dynamically as the belt wears or stretches during operation.
- Low-Friction Pulley Design: Features high-grade bearing seats for a smooth-running surface that reduces energy consumption.
- Heavy-Duty Spring Mechanism: Engineered with high-fatigue-resistant alloys to provide constant force over millions of cycles.
- Vibration Dampening Interface: Built-in dampening qualities to absorb belt slap and reduce noise in high-speed applications.
- Universal Mounting Bracket: Simplified mounting geometry for easy retrofitting into existing machine frames or new designs.
