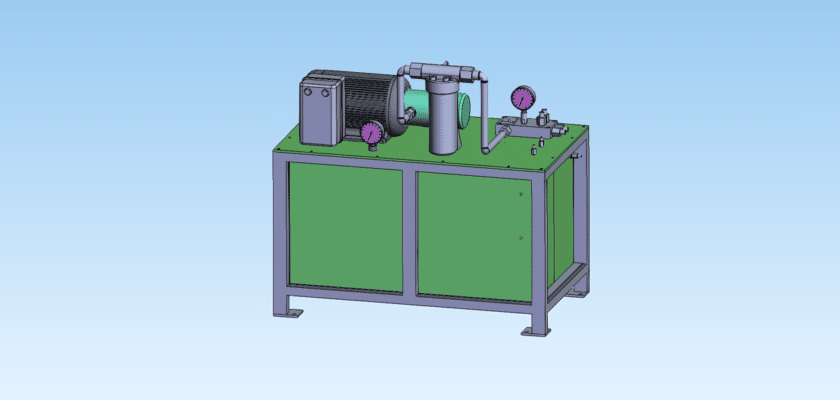

Secure the ultimate technical desenho package for the E15 Hydraulic Station! MechStream offers these high-precision blueprints for instant download now. This essential power unit, likely designed for systems requiring up to E15 class performance, is characterized by its compact, integrated design, making it perfect for mobile applications, small industrial machinery, or confined spaces where efficient fluid power is necessary. The E15 Hydraulic Station combines the pump, motor, reservoir, and valve manifold into a space-saving footprint while maintaining high reliability.

Our comprehensive package grants fast access to the awesome design specifications of this incredible unit. The desenho set includes detailed schematics for the compact reservoir body, the close-coupled pump/motor assembly, the integrated manifold block, and the component interface points. Understanding the internal fluid routing and component integration is key to maximizing efficiency and minimizing heat generation in such a compact unit. By downloading these powerful technical files, you gain all the necessary dimensional data, structural specifications, and assembly layouts for accurate fabrication, maintenance, or rigorous engineering analysis. Stop struggling with bulky power units. Download the complete E15 Hydraulic Station drawing today and leverage professional-grade schematics to ensure your machine is driven by a reliable, space-efficient, and expertly engineered fluid power source. This resource is indispensable for compact machine designers.

Principais recursos:

  • Tamanho compacto: Detailed dimensions for the overall unit, emphasizing reduced size for easy integration into smaller machinery.
  • Integrated Manifold Design: Schematics detailing how the control valves and fluid passages are directly machined into a single block, eliminating external piping.
  • Close-Coupled Motor/Pump: Plans for the direct coupling assembly, minimizing noise and vibration while maintaining high power density.
  • Reservoir Features: Specifications for the tank, including minimized fluid volume requirements and internal features like strainers and breathers.
  • Component Interface: Precise mounting and porting details for connecting high-pressure lines to the actuators and controls.
