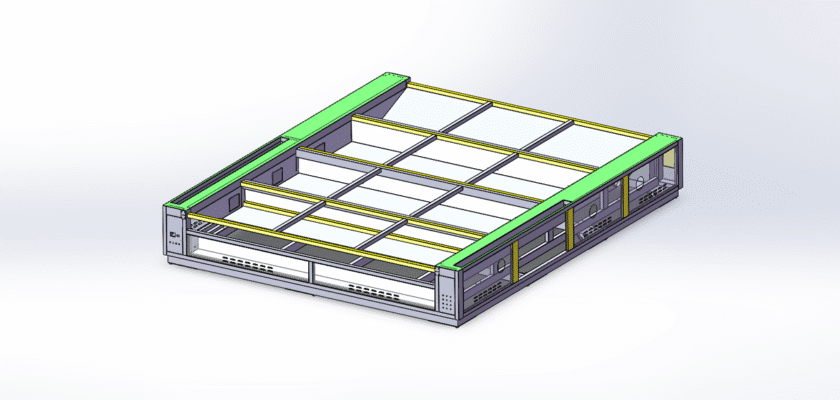

Accelerate your high-production build with our Four-Head Laser Machine Frame drawing. This free MechStream download is the ultimate blueprint for OEM builders and advanced workshops aiming to construct a high-throughput, multi-tool laser system. A four-head setup dramatically increases production capacity, allowing for simultaneous cutting or engraving of multiple parts, but it demands an exceptionally rigid and precise gantry system to maintain accuracy across the entire working area.

Building a stable multi-head gantry from scratch is a significant engineering challenge. Our drawing provides a complete, fabrication-ready design, saving you hundreds of hours in R&D and prototyping. This isn’t a lightweight hobbyist frame; it’s a heavy-duty chassis engineered for stability, speed, and parallel operation. It’s designed to minimize vibration and torsion, ensuring all four laser heads maintain perfect alignment and positional accuracy during high-speed movements.

This download package includes fully editable DWG, DXF, and PDF formats, compatible with any CAD software. Use this professional-grade design to start your fabrication immediately. You can adapt the frame for different workbed sizes, specific linear rails, or your choice of stepper/servo motors. Download this essential file today and get the professional foundation you need for your custom, high-volume laser machine.

Principais recursos:

  • Quad-Head Gantry Design: The X-axis gantry is specifically engineered to carry four independent laser head carriages, ensuring precise spacing and alignment.
  • High-Rigidity Frame: Features a robust, heavy-duty frame design (e.g., welded steel tubing or large-profile aluminum extrusion) to eliminate flex and vibration during high-speed parallel operations.
  • Precision Motion Ready: Includes mounting provisions for high-grade linear guide rails and ball screw or belt-drive systems on both X and Y axes.
  • Projetos prontos para fabricação: The drawing set is fully detailed with dimensions, weld callouts, and material specifications for immediate manufacturing.
  • Fully Editable CAD Files: Supplied in native DWG and DXF formats, allowing you to easily customize the frame dimensions, work area, or mounting points.
