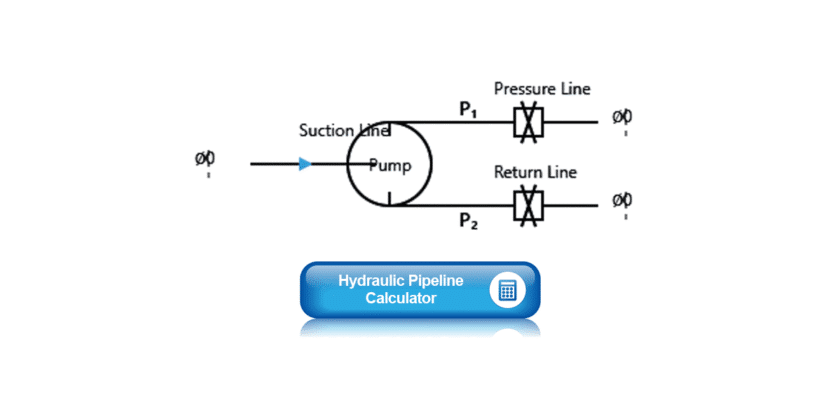

Discover the efficiency of our Hydraulic Pipeline Calculator, designed to optimize your hydraulic system planning and analysis. This user-friendly tool allows engineers and technicians to accurately calculate pressure drops, flow rates, and pipe sizes for efficient system design. Whether you’re designing a new system or optimizing an existing one, our calculator provides precise results, saving you time and resources. Utilize the Hydraulic Pipeline Calculator to enhance your project’s performance and reliability, ensuring optimal fluid dynamics and cost-effectiveness in every application.
Parameter Definitions
System Pressure
The operating pressure of the hydraulic system. This value represents the maximum working pressure in the pipeline system.
Flow Rate
The volume of fluid flowing through the pipeline per unit time. This parameter is crucial for determining pipe sizes and flow velocities.
Pipe Inner Diameter
The internal diameter of the pipeline. This dimension directly affects flow velocity and pressure loss in the system.
Fluid Viscosity
The measure of the fluid’s resistance to flow. Higher viscosity fluids require more energy to pump and result in greater pressure losses.
Metal Pipe Length
The total length of rigid metal piping in the system. Metal pipes typically have lower pressure losses but less flexibility in routing.
Flexible Hose Length
The total length of flexible hoses in the system. Flexible hoses allow for movement and vibration isolation but typically have higher pressure losses.
