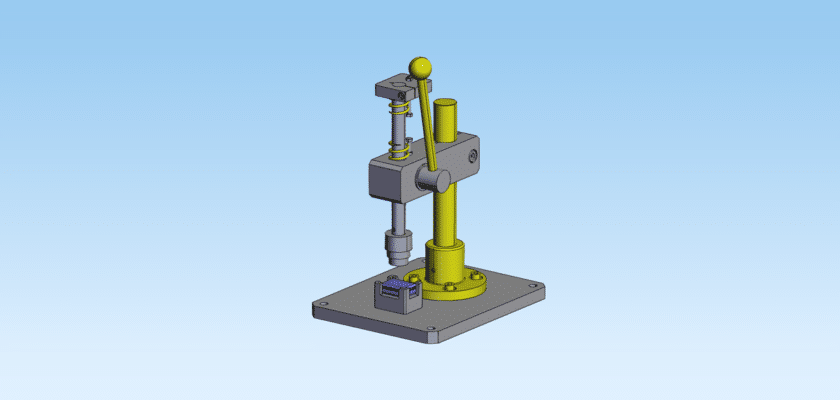

Discover the efficiency of the Part Fixing Mechanism Using O-Rings, a versatile and cost-effective solution for securing components in precision assemblies. This mechanical design utilizes the elastic properties of high-quality elastomers to provide a reliable friction-fit or cushioning interface between mating parts. Whether you are working on pneumatic systems, modular jigs, or quick-release assemblies, this drawing offers a standardized approach to part retention without the need for complex fasteners or heavy hardware.
Ao baixar isso desenho, you gain access to a meticulously detailed layout that accounts for compression ratios, groove dimensions, and material tolerances. This specific mechanism is favored in industries ranging from automotive to consumer electronics because it reduces assembly time and minimizes the risk of vibration-induced loosening. The provided CAD data ensures that your O-ring grooves are machined to the exact specifications required for a perfect seal or mechanical grip, preventing common failures such as ring extrusion or insufficient tension. Enhance your project’s durability and simplify your manufacturing process by integrating this field-tested fixing method into your next design.
Principais recursos:
- Precision Groove Specifications: Detailed dimensions for O-ring housing to ensure optimal compression and friction.
- Tool-Less Assembly: Simplifies the mounting and dismounting process, making it ideal for maintenance-heavy applications.
- Vibration Dampening: The elastomeric interface naturally absorbs shocks, protecting delicate internal components.
- Cost-Efficient Design: Reduces the bill of materials by replacing expensive mechanical clamps with standard O-rings.
- Alta compatibilidade: Designed for use with various materials, including aluminum, steel, and industrial plastics.
